Clear Acrylic Disks: Laser Cutting 1/8″

CNCROi.com has built a solid reputation for precision, and creativity in the world of laser and CNC fabrication, especially when it comes to making custom clear acrylic disks. Although the disks in this particular case were shipped out in a hurry to reach a client on time, the remaining acrylic sheet still provides the perfect opportunity to discuss everything about this fascinating material and how it performs under different cutting methods.

Custom clear acrylic disks are a fundamental part of countless projects ranging from signage to industrial applications. The team at CNCROi.com loves working with this material because of its versatility, durability, and the excellent aesthetic finish it delivers.

Acrylic, sometimes called PMMA, is known for holding heat slightly longer than some plastics but not nearly as much as polycarbonate.

This means care must be taken during cutting to avoid warping, especially when cuts are made too close together. By spacing cuts strategically, CNCROi.com ensures that the final set of custom clear acrylic disks stays perfectly flat and consistent in thickness.

One of the charming quirks of acrylic is its brittleness. It breaks cleanly, which can be useful when detaching smaller pieces or cleaning up edges. The sheet used for the custom clear acrylic disks was 1/8 inch (3 millimeters) thick and came with protective masking on both sides.

This masking is essential because it prevents scratches, fingerprints, and scuffs during both the cutting process and shipping. Acrylic, once scratched, cannot be restored to its original flawless finish. Buffing it will only leave swirl marks that reflect light unevenly.

For customers who demand absolutely optical clarity, CNCROi.com often recommends polycarbonate instead of acrylic.

Polycarbonate is more expensive for the same thickness but offers superior scratch resistance and impact strength. However, acrylic wins in aesthetic applications where clarity and shine are priorities and physical stress is minimal.

It is also significantly easier to laser cut, making it ideal for custom clear acrylic disks that need precise dimensions and smooth edges.

CNCROi.com also has a playful appreciation for acrylic scraps. When tossed into a fire, acrylic burns with an incredibly hot, blue flame.

The company enjoys finding practical or entertaining uses for leftover material, reinforcing the idea that no piece of acrylic ever truly goes to waste in their workshop but if you aren’t as adventurous, it’s easily recycled as well.

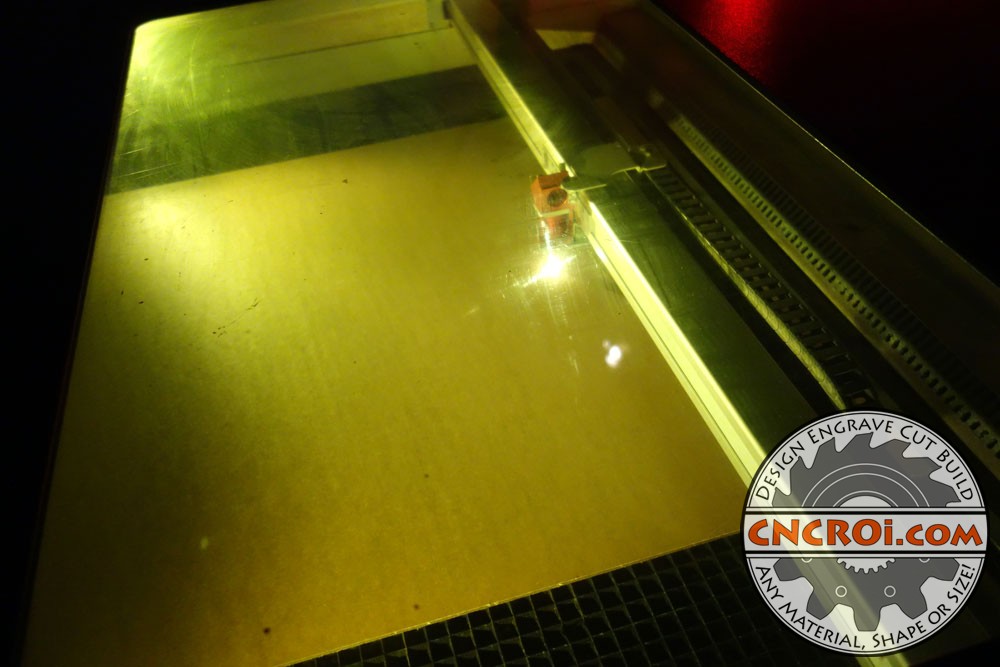

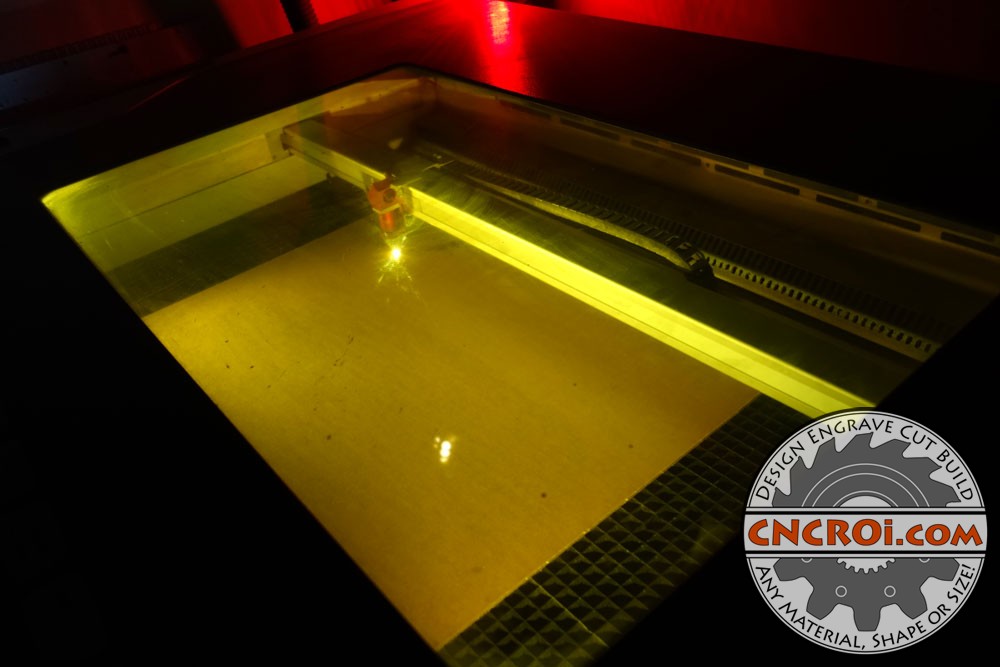

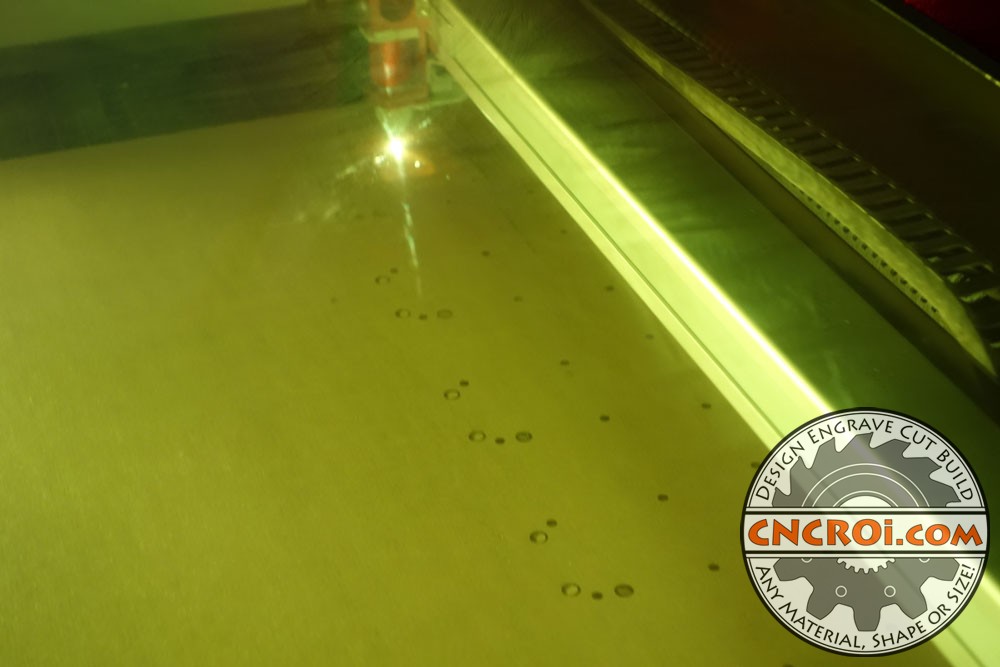

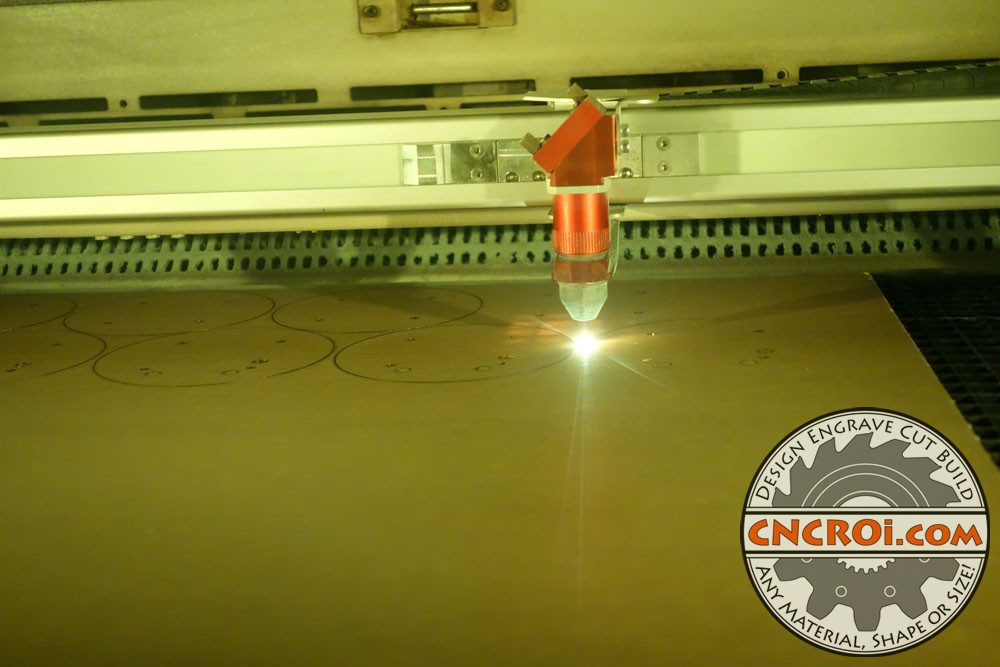

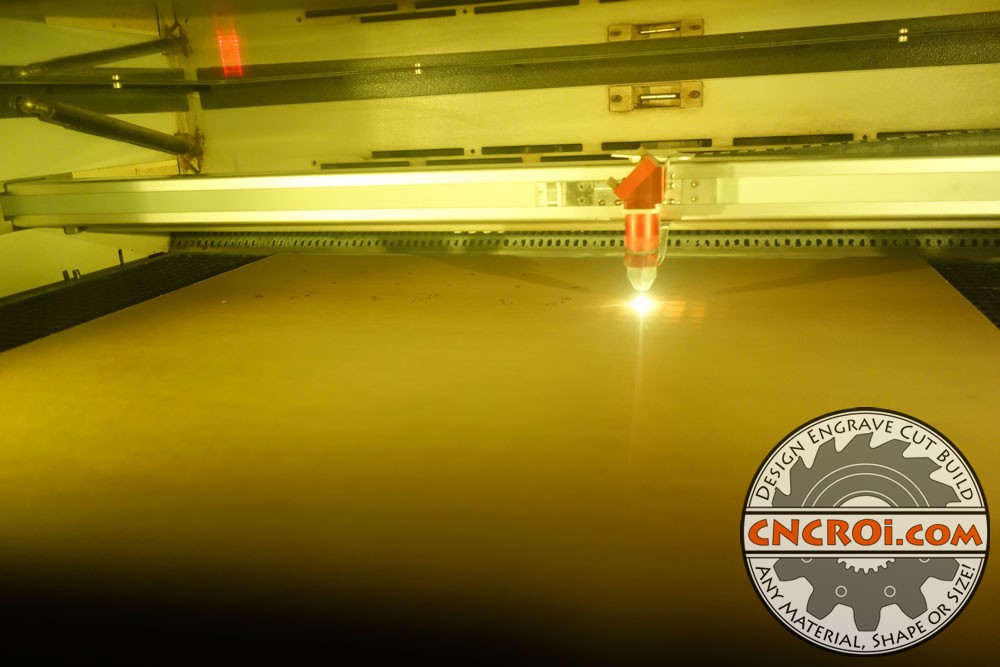

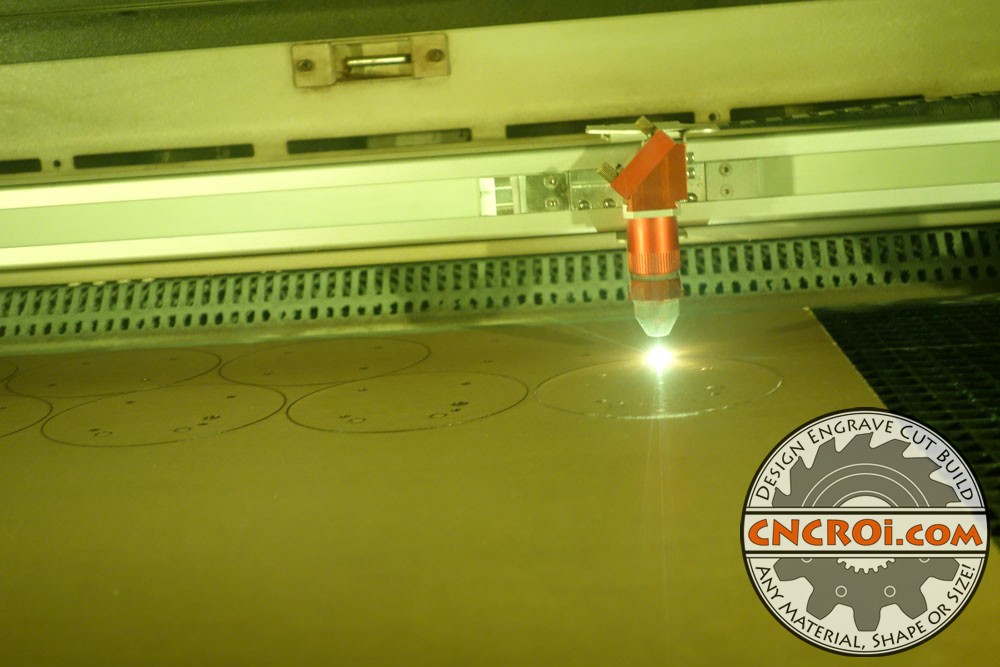

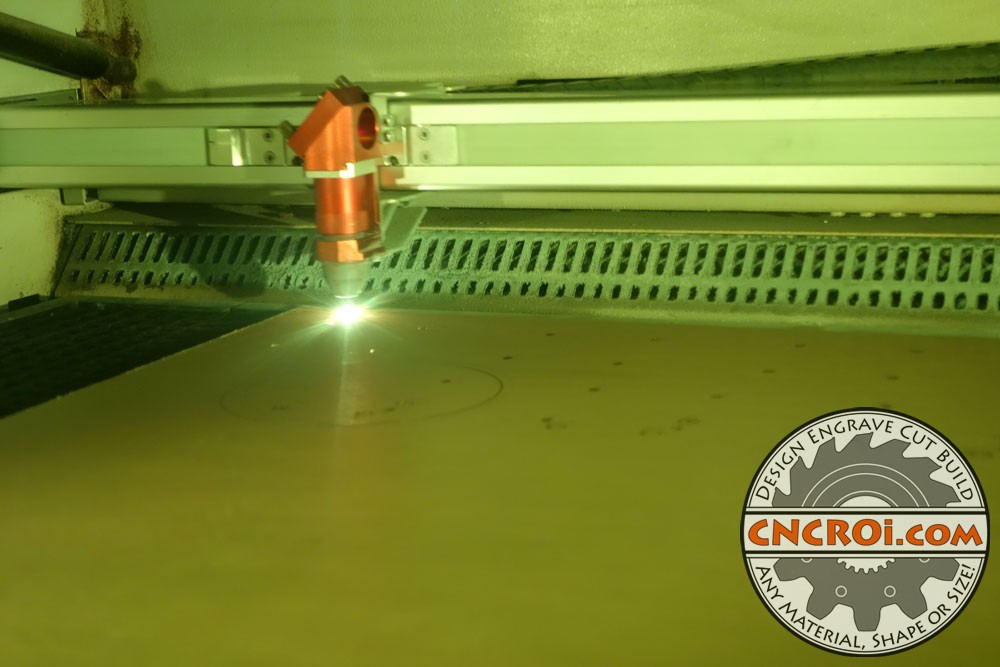

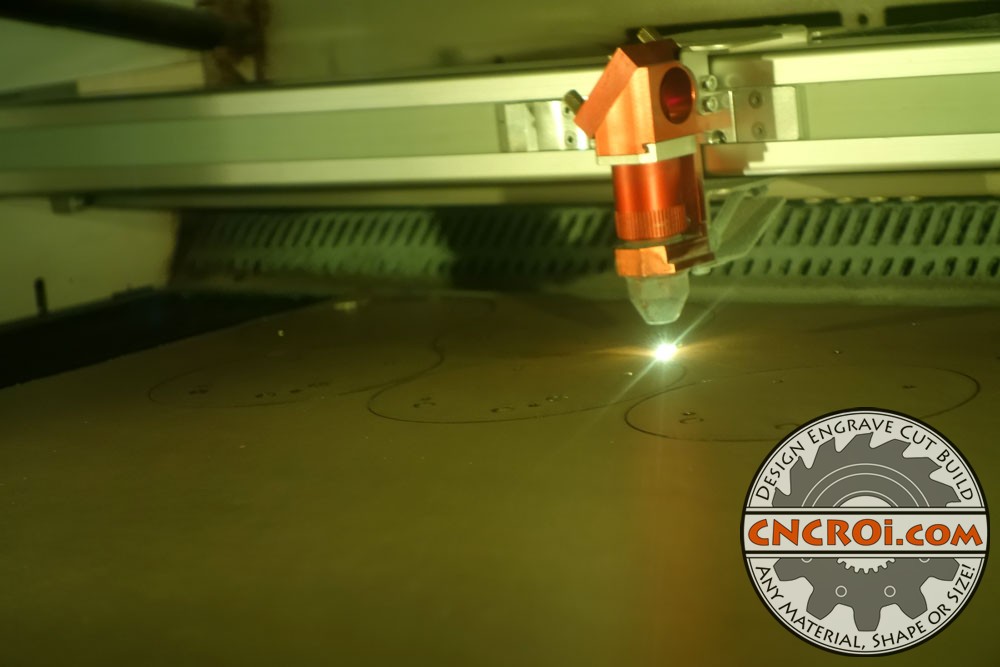

When cutting custom clear acrylic disks, the laser passes both inside and outside the intended outlines. If one looks closely, the transparency of clear acrylic makes it possible to see the grid table beneath through both protective films.

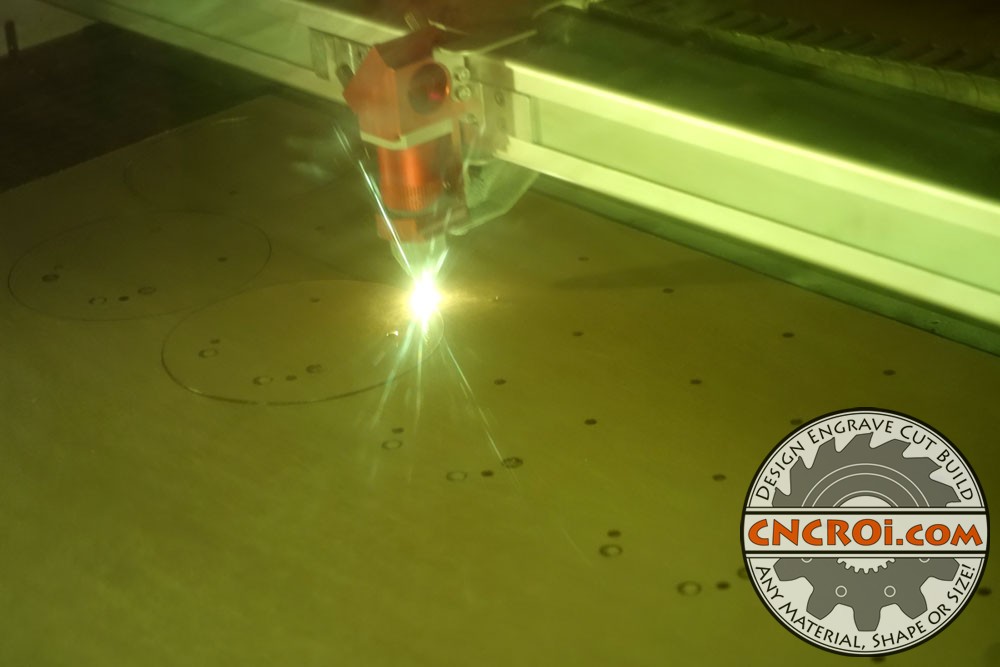

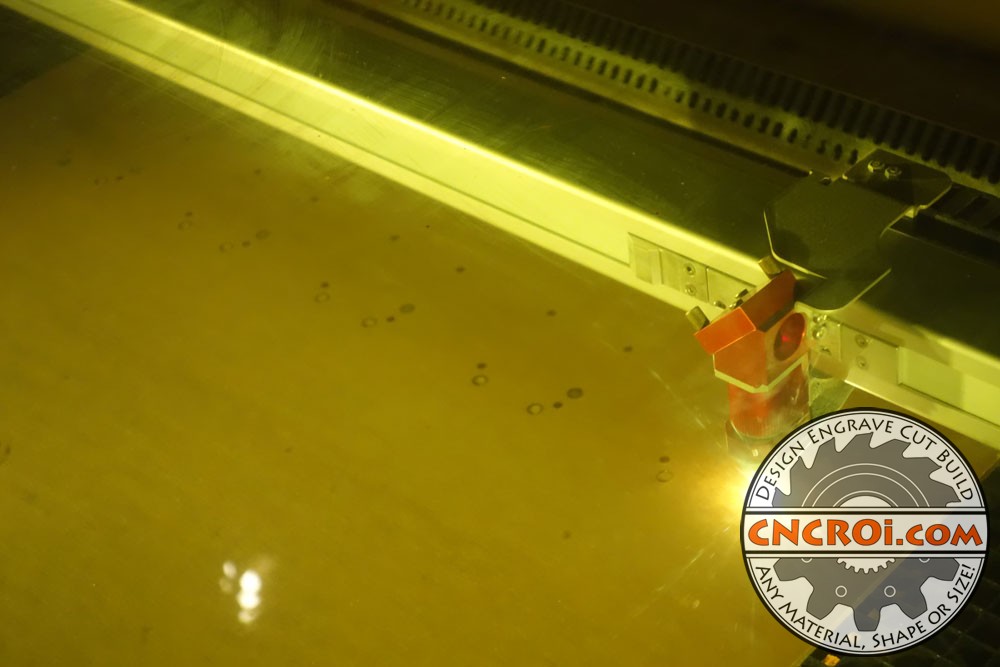

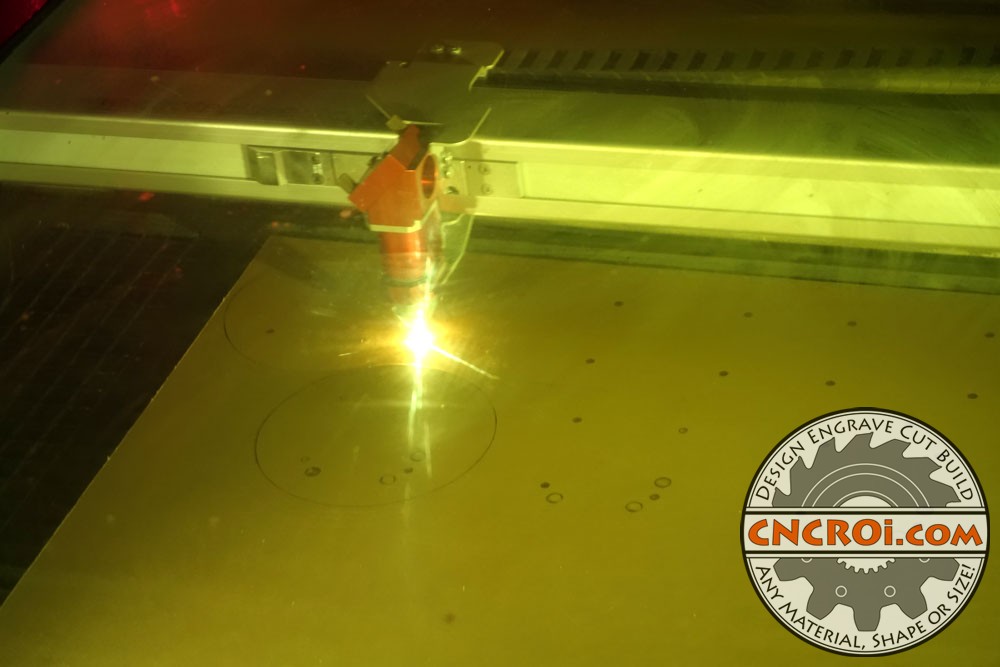

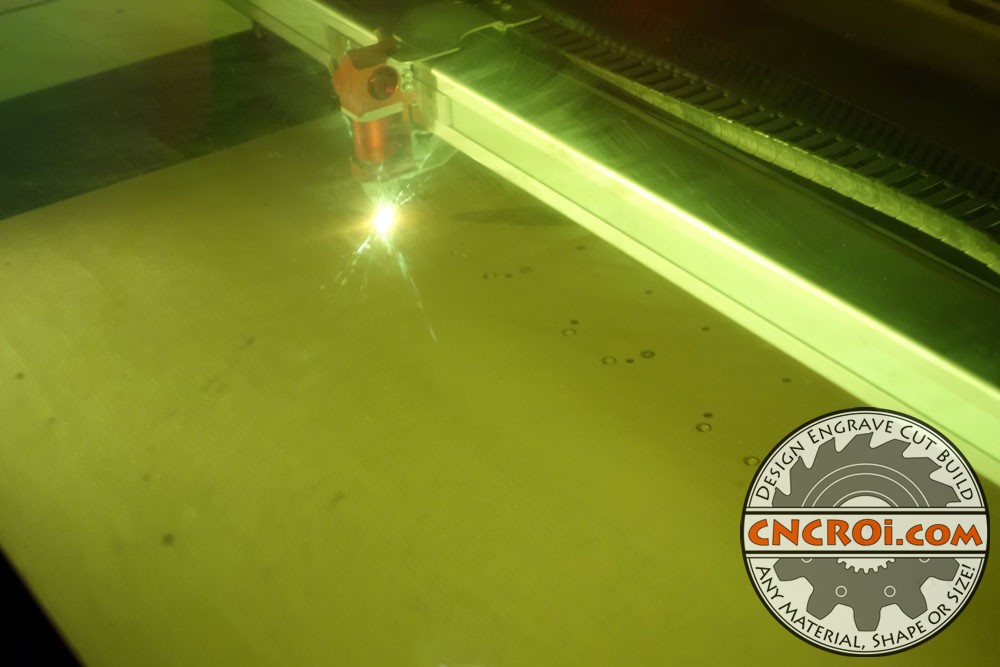

During laser cutting, a small flame can form underneath the sheet, which is why CNCROi.com runs an active vacuum and air assist system. This keeps the top of the material cool while allowing the flame beneath to dissipate safely.

Without these safety measures, acrylic’s combustibility could turn a routine cutting job into a shop-wide bonfire.

Laser cutting acrylic is inherently risky without proper airflow, yet it provides the best surface finish possible.

The edge of each custom clear acrylic disk comes out smooth and flame-polished, requiring no post-processing. Water jet and router cutting are alternative methods, each with its own pros and cons, but the laser offers unmatched precision for thinner sheets and smaller diameter parts.

Water jet cutting is a cold process that uses high-pressure water mixed with abrasive particles. It completely eliminates the risk of flame or burning.

The trade-off is that water can sometimes seep under the masking film, leaving marks known as overspray and underpay. These water stains are often permanent, and depending on the project’s intended use, that may or may not be acceptable.

CNCROi.com takes care to explain these trade-offs to clients before selecting the best method for their custom clear acrylic disks.

The router method, on the other hand, uses physical contact and cutting bits to shape the acrylic. It’s a faster method for larger and thicker pieces but generates heat through friction, so coolant or air assistance is often required.

The downside is that router bits wear out quickly when used on brittle materials like acrylic. The company must balance speed and cost-effectiveness without compromising on surface quality.

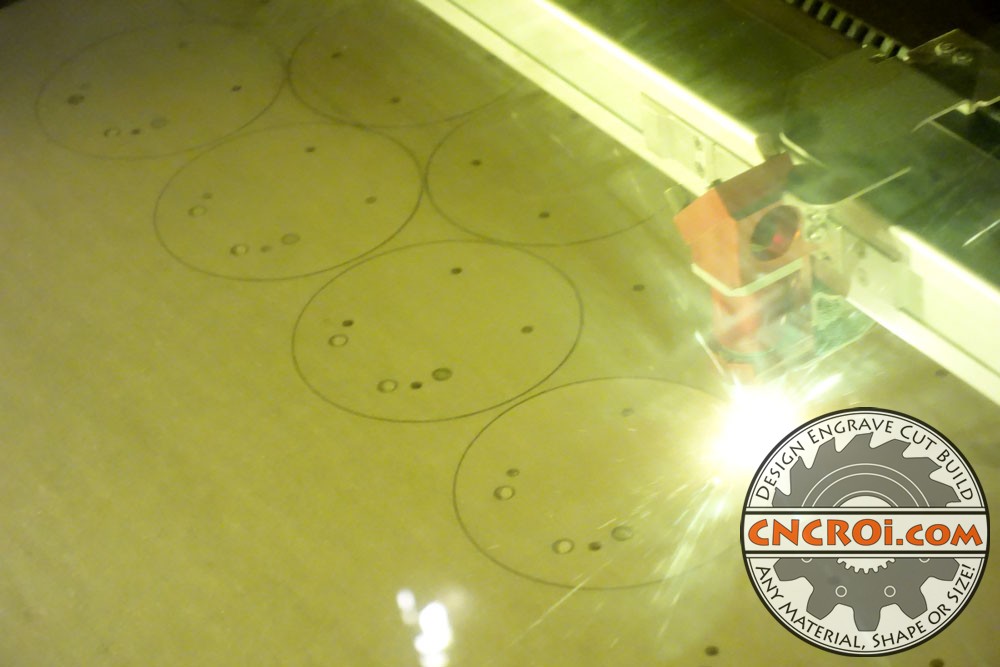

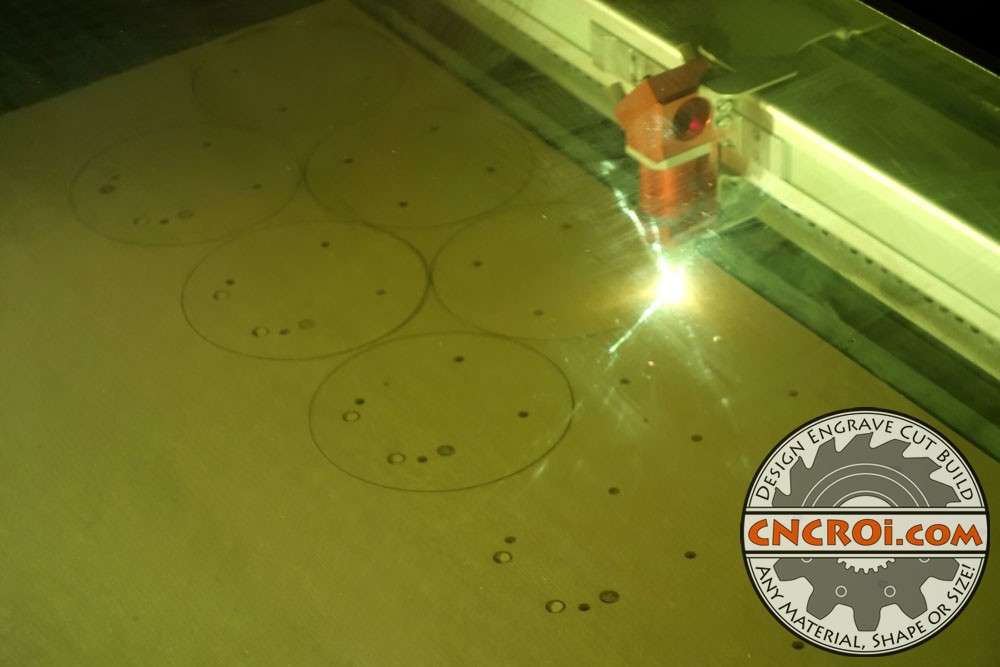

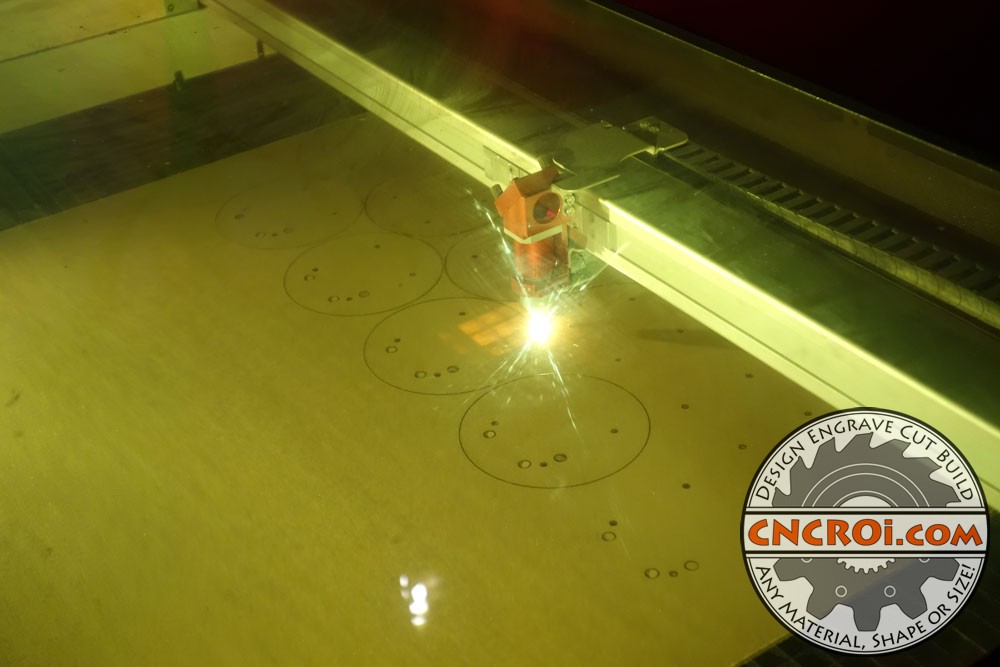

Each cutting process has an ideal use case. For small or thin custom clear acrylic disks, the laser remains unbeatable. It allows CNCROi.com to nest parts tightly together, reducing material waste.

When working with a router, the bit diameter limits how close cuts can be placed, and with a water jet, overspray becomes the main issue. On very large or thick disks, the router becomes more practical, while the laser retains the edge in precision for smaller items.

Acrylic’s brittleness influences the choice of cutting method as well. Since the material can snap easily, especially at thinner dimensions, laser cutting avoids stress and vibration that could crack it.

This no-contact approach is ideal for maintaining dimensional accuracy across batches of custom clear acrylic disks. The result is a consistent, polished appearance that looks professional straight out of the laser.

CNCROi.com takes great care to control heat during the process. Acrylic absorbs energy quickly, and excessive heat buildup can cause bubbling or melting at the edges.

By maintaining proper spacing and using calibrated power settings, the team ensures each disk retains a perfect circular shape with crystal-clear edges. This level of control is critical for customers using the disks in optical, decorative, or mechanical applications.

Water jet cutting, while slower, shines when dealing with thicker acrylic sheets. It can handle thicknesses up to several inches (over 25 millimeters) without distortion. The finish is matte rather than polished, but it’s consistent and clean.

For projects that prioritize functionality over aesthetics, water jet cutting is sometimes the best option. The router can produce a semi-polished edge with additional passes, but again, tool wear becomes a consideration.

Acrylic, in general, is a fun material to work with. It has a balance of fragility and durability that keeps things interesting. It’s hard enough to stay rigid, but brittle enough to demand a careful touch.

CNCROi.com’s team enjoys this challenge, blending technical precision with a sense of humor about the occasional quirks that come with cutting plastics. Whether the result is a dozen small disks or one massive circle, the satisfaction of seeing clear acrylic transformed into a perfect custom piece never gets old.

The company also values efficiency in production. Nesting patterns are planned using CAD software to minimize waste and optimize the layout on each sheet. Because laser cutting allows extremely close spacing, the company can often produce more disks per sheet than competing methods.

The leftover material is then categorized for reuse or recycling, keeping operations both cost-effective and environmentally mindful.

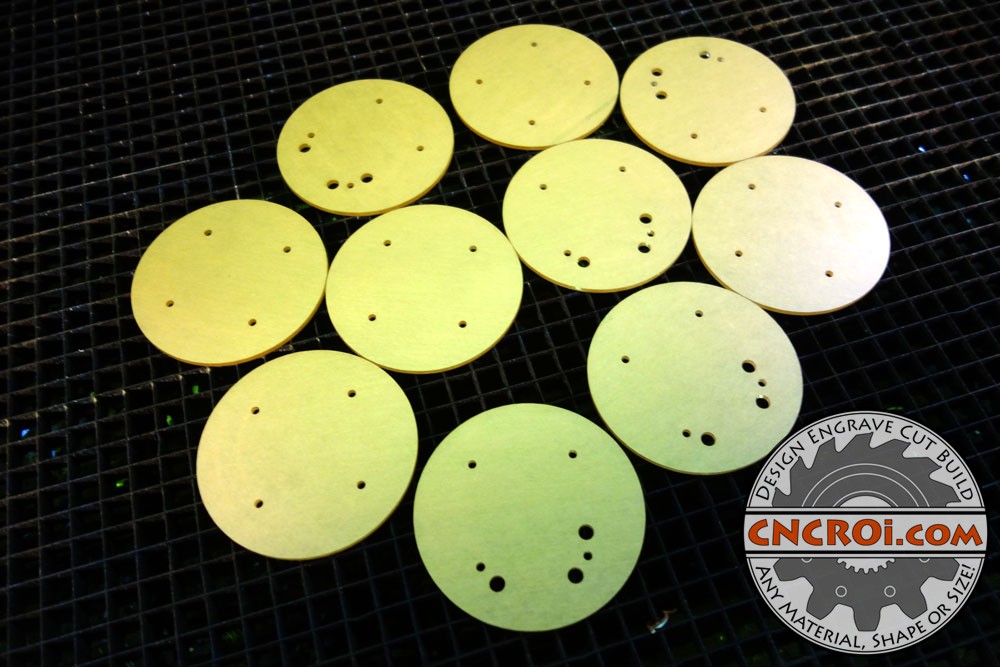

Shipping is handled with care. Each batch of custom clear acrylic disks leaves the shop with protective masking still intact, preserving that pristine clarity customers love.

The packaging prevents any rubbing or scuffing during transit, and the result is a flawless set of parts that arrive ready for immediate use. The company knows that the first impression when opening that box should be pure visual satisfaction.

Despite the technical nature of the work, CNCROi.com’s tone remains refreshingly approachable. There’s a playful awareness of how something as simple as a disk can carry so much importance in design, art, and manufacturing.

A single custom clear acrylic disk might become part of a museum display, a mechanical prototype, or even an intricate lighting fixture.

Each serves a different purpose, but all share the same foundation of precision cutting and clear quality.

CNCROi.com’s versatility doesn’t stop at acrylic. Similar processes are applied to wood, metal, foam, and composite materials, making us a one-stop destination for anyone who needs parts fabricated exactly to specification.

But among all these materials, clear acrylic remains a favorite because of how beautifully it captures light and form once cut.

Laser technology allows for the production of custom clear acrylic disks in virtually any diameter, thickness, or shape variation. Whether the requirement is for small identification markers or large display panels, the same accuracy is maintained.

The non-contact laser cutting method eliminates physical stress on the material, ensuring that each piece maintains a perfect geometry even on intricate designs.

As thickness increases, the production method may shift toward routing or water jet cutting, but the goal remains identical: to deliver flawless results.

CNCROi.com carefully evaluates the client’s design files, end-use environment, and desired finish before choosing the most suitable process. This ensures every custom clear acrylic disk meets functional and visual expectations.

For anyone in need of precision-cut acrylic components, large or small, CNCROi.com stands ready to help. Whether the goal is to produce hundreds of identical parts or a single prototype, the team delivers high-quality results with quick turnaround times and plenty of creative enthusiasm.

There’s always another project waiting to be transformed into something brilliant, and CNCROi.com is just a message away from making it happen.
