Carving Masterpiece Tables

The process of creating carving masterpiece tables using both CNC routing and laser engraving is intricate, detailed, and packed with considerations that go far beyond simply cutting into wood.

CNCROi.com understands this better than anyone, from adjusting bit strategies to optimizing contrast in engraved surfaces to deliver impressive, high-precision results. Whether it is large laminated maple tables or compact side pieces, the attention to detail at every step ensures that each carving masterpiece table is delivered at the highest possible quality.

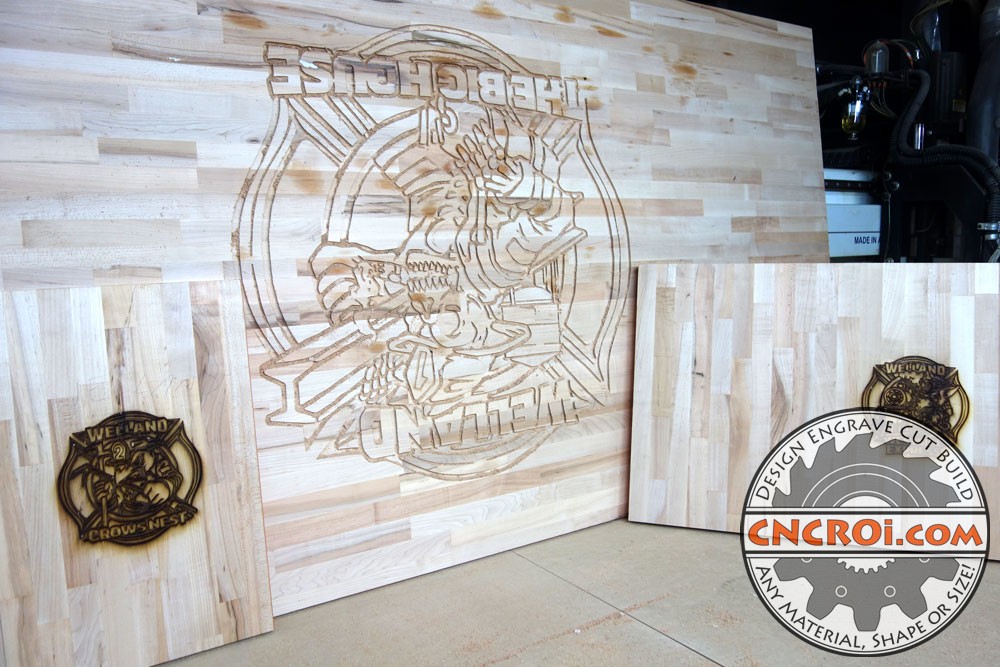

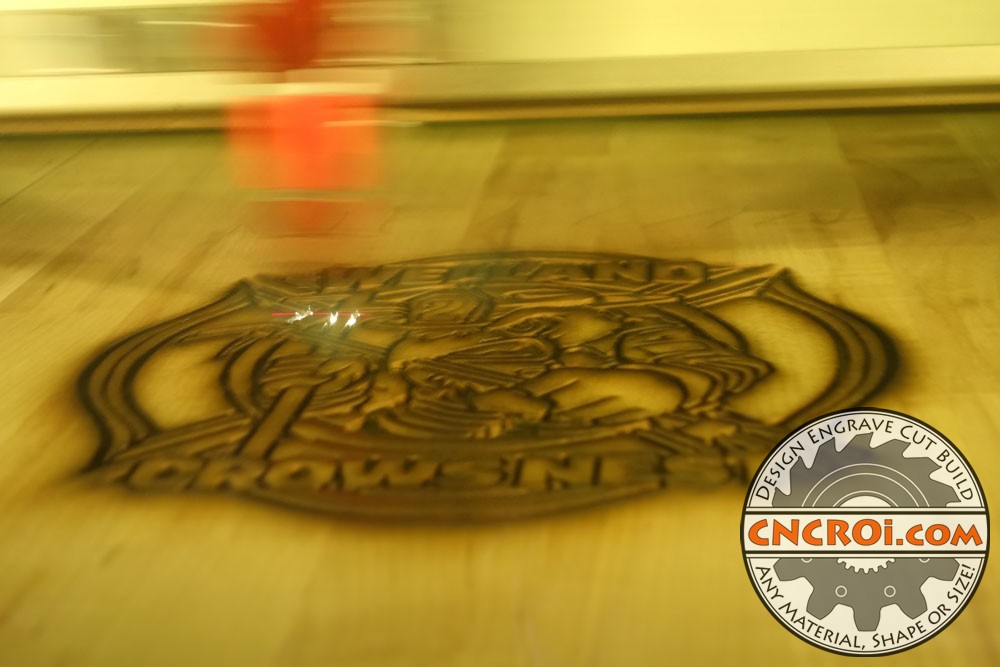

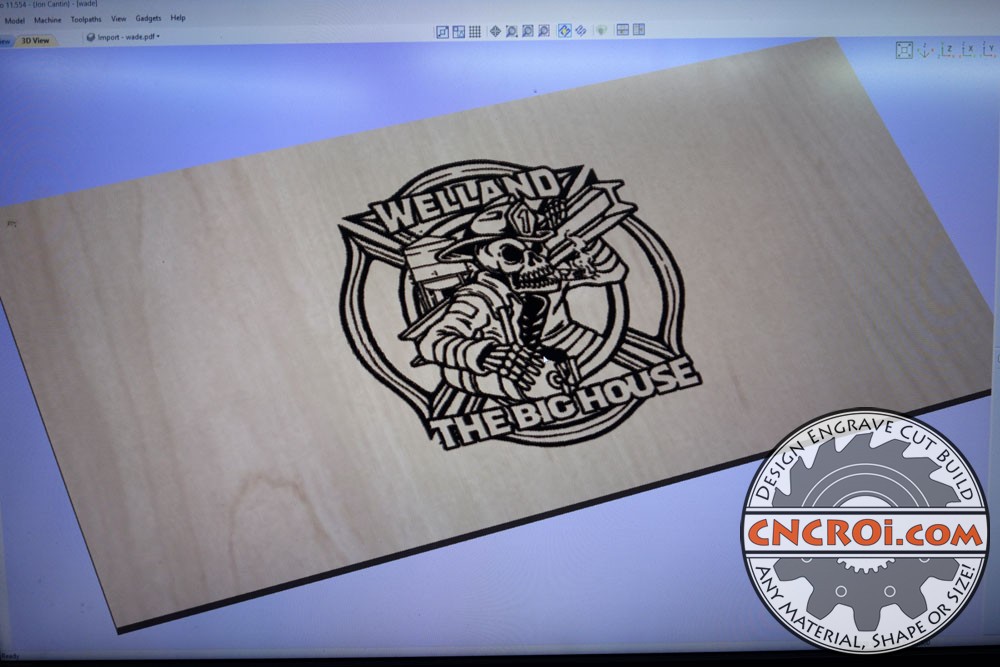

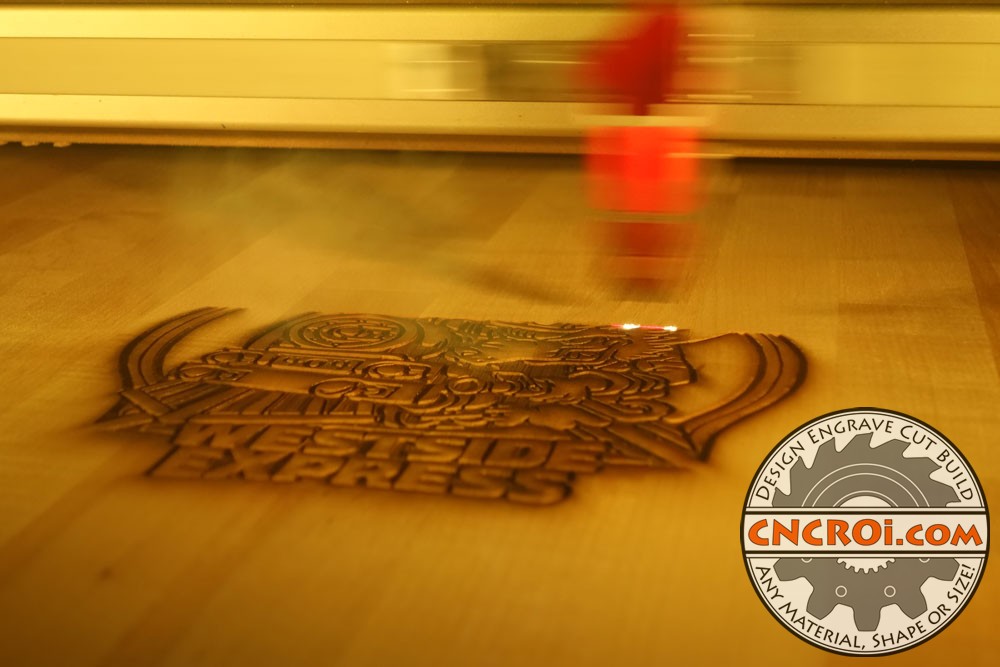

The above picture is what the proposed table will look for after CNC carving and black epoxy finish. For laser engraving, the benefit is immediate visual contrast. When a laser hits the surface, it creates charcoal, which provides a natural contrast that’s visible right away.

Though this initial burn might look slightly muddy because of leftover smoke and residue, a simple sanding reveals a crisp design. Clients often follow up with a epoxy fill, enhancing the depth and visual weight of the engraved details. This technique was applied not just to small side tables but also as a complementary finish for larger CNC routed pieces, allowing all tables to maintain a consistent visual style.

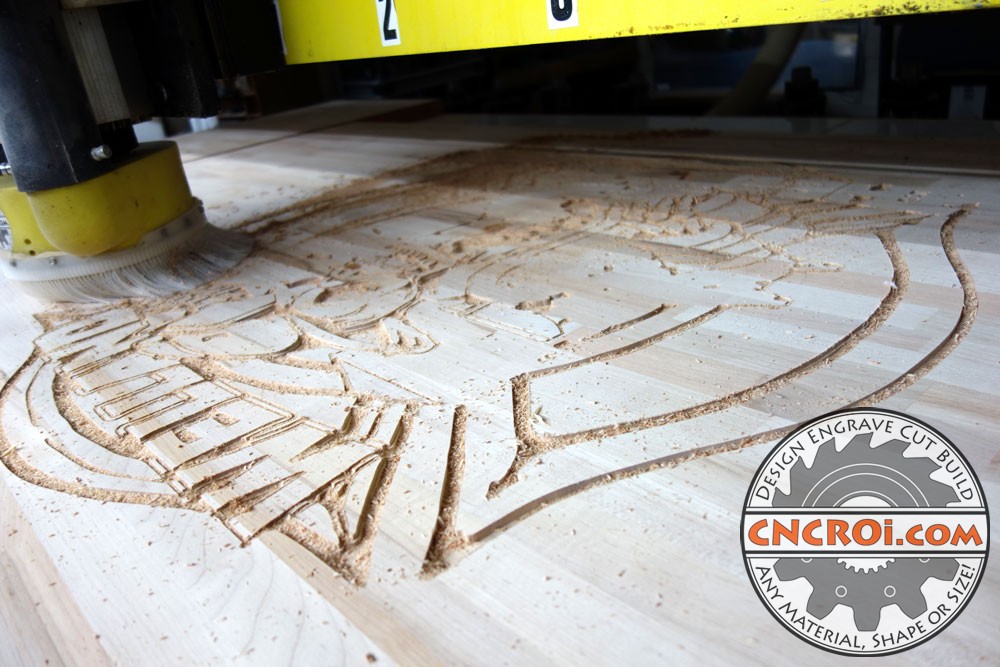

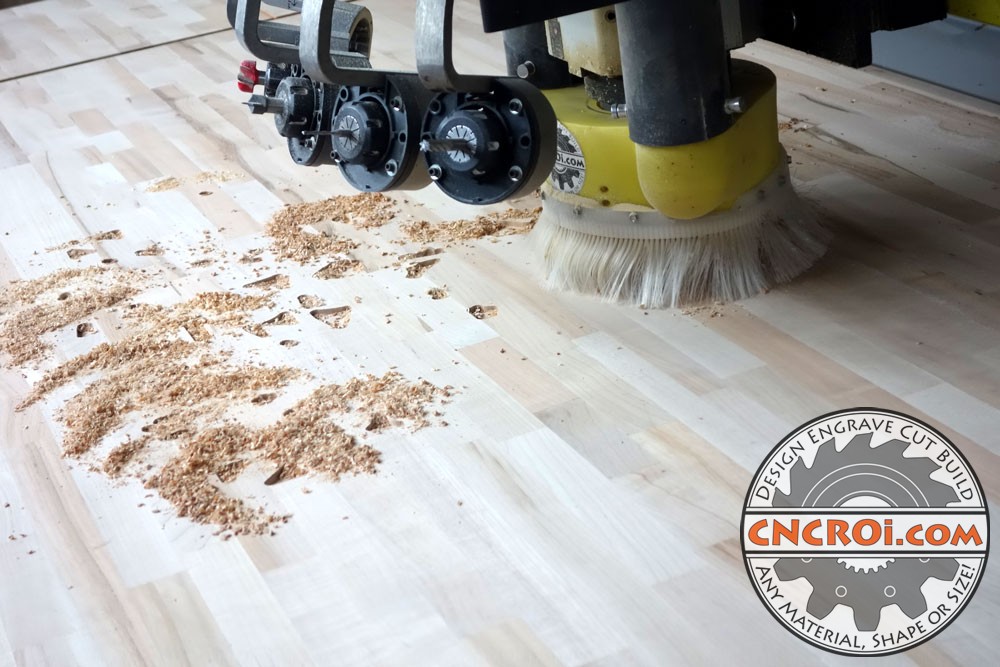

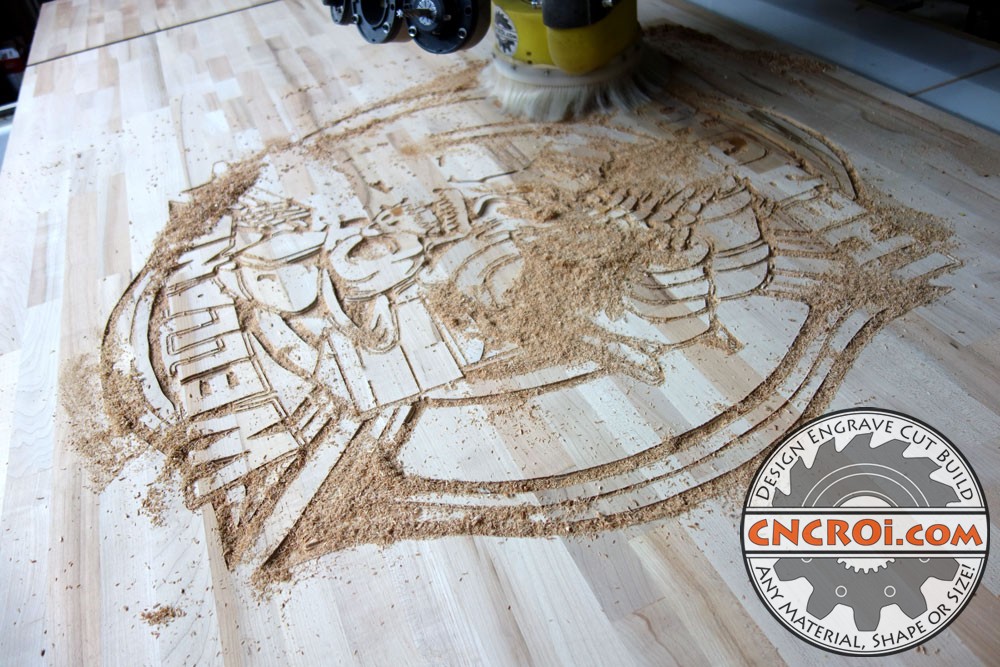

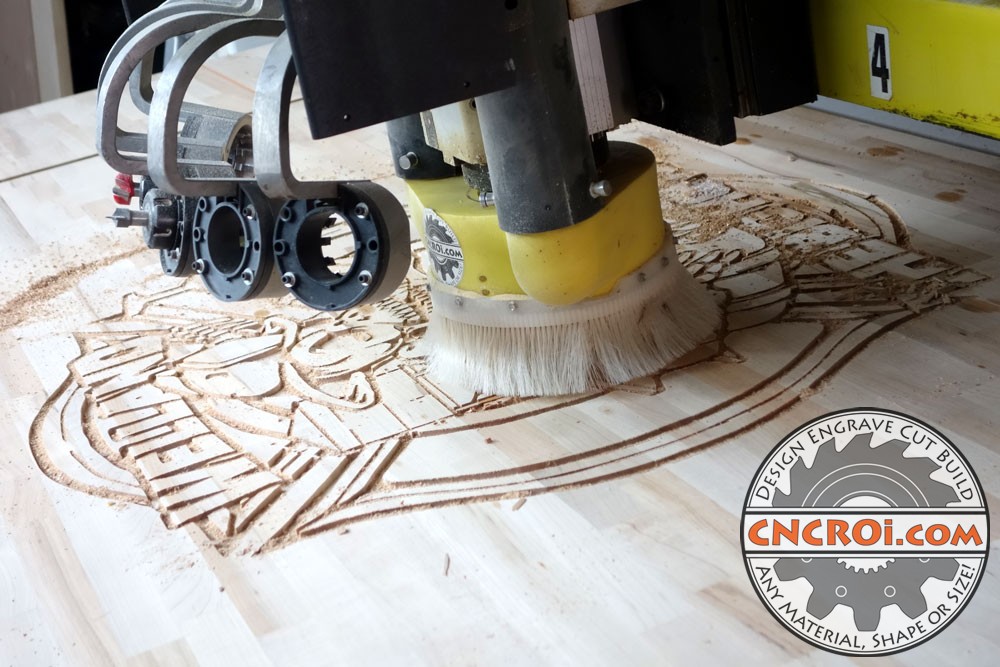

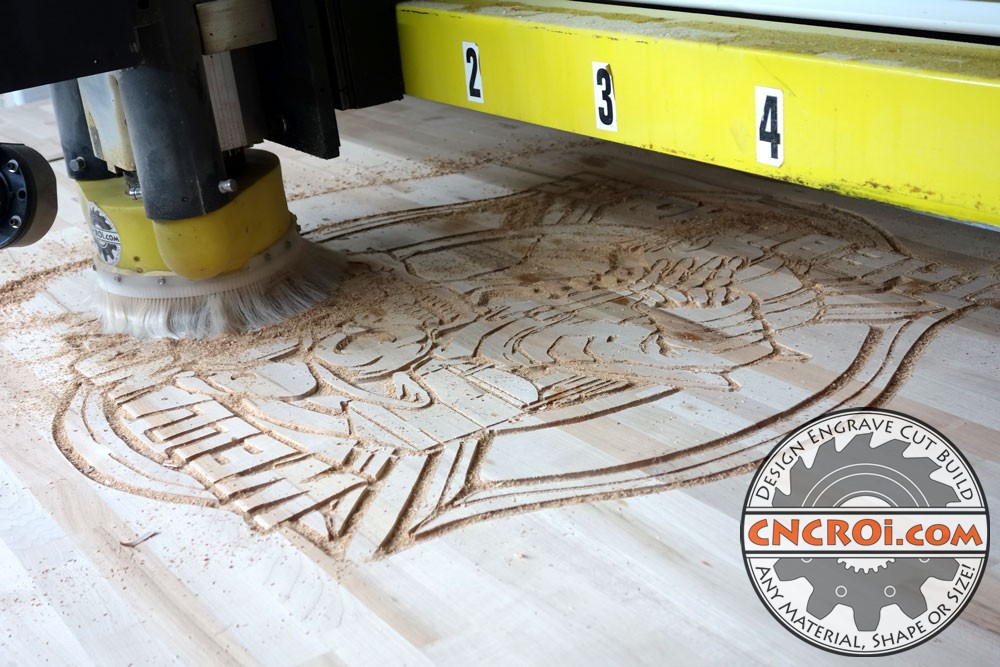

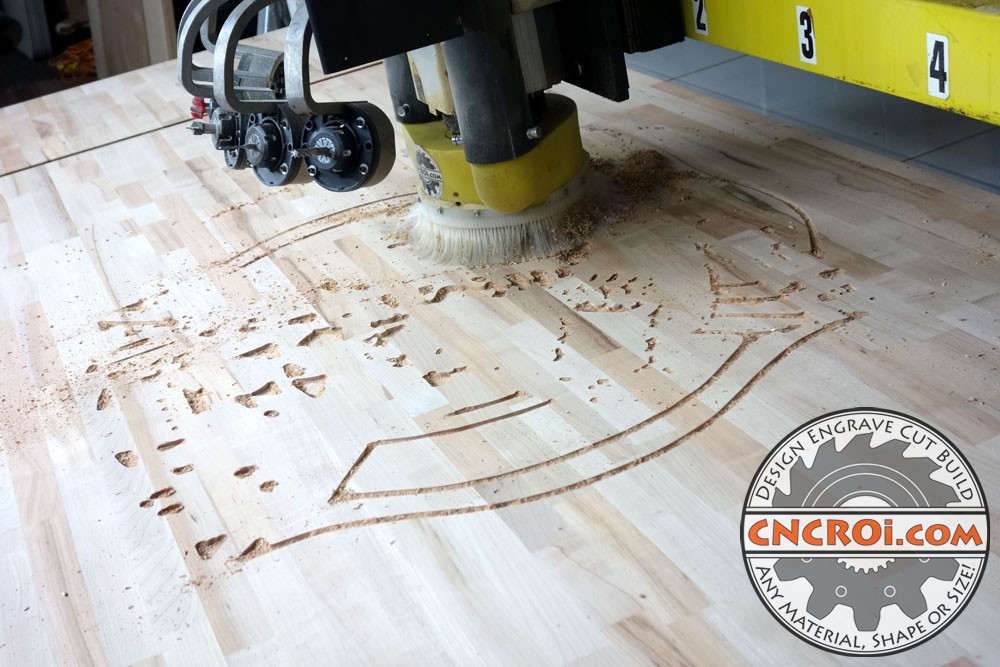

The CNC carving masterpiece tables, on the other hand, require a tiered bit approach. The first pass is done with a 12.7 millimeter (1/2 inch) diameter bit, which removes the bulk of the material quickly. The second pass uses a 6.35 millimeter (1/4 inch) bit to get into tighter corners and more defined edges. Finally, a 3.175 millimeter (1/8 inch) bit is used for refining and intricate detail.

This strategy avoids over-stressing small bits by letting the larger ones handle the heavier material removal first.

Attempting to use only the smallest bit, like 1/8 inch, across the entire design would take an unreasonable amount of time and risks bit deflection, especially at the 6.35 millimeter (1/4 inch) depth required. Thin bits cannot absorb the same load, and their fragility makes them prone to snapping, especially in hard, laminated maple.

That’s why carving masterpiece tables necessitate this stepped process. It not only saves time but also extends tool life while delivering accurate and clean results.

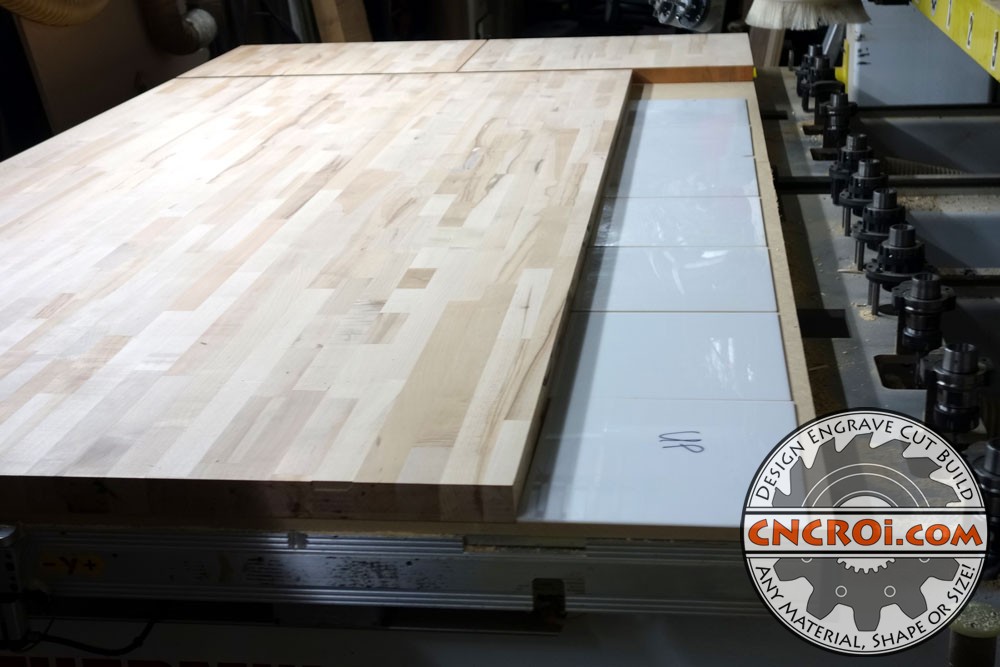

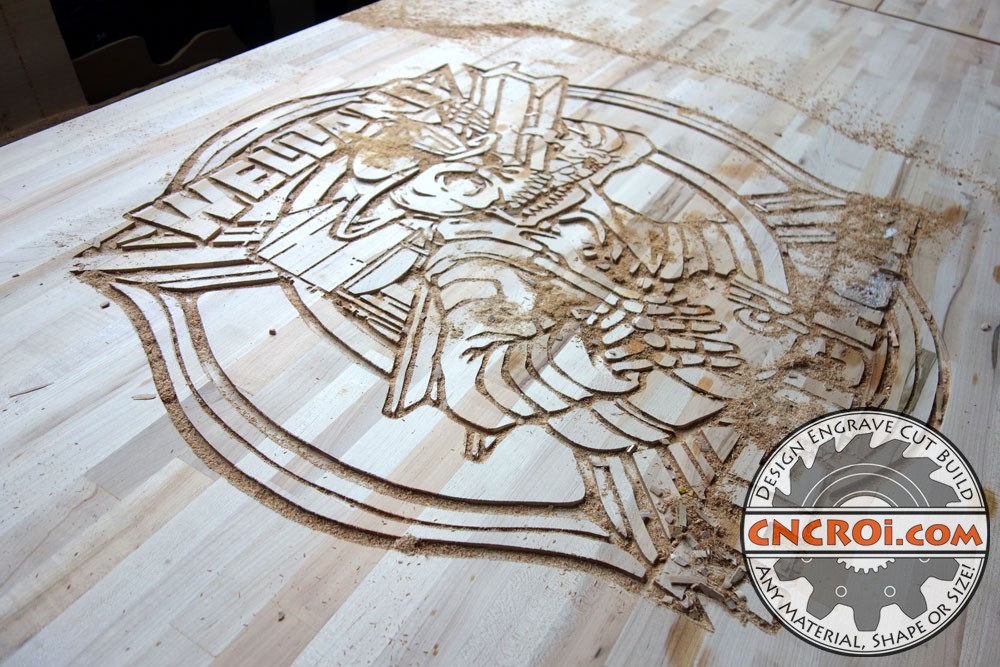

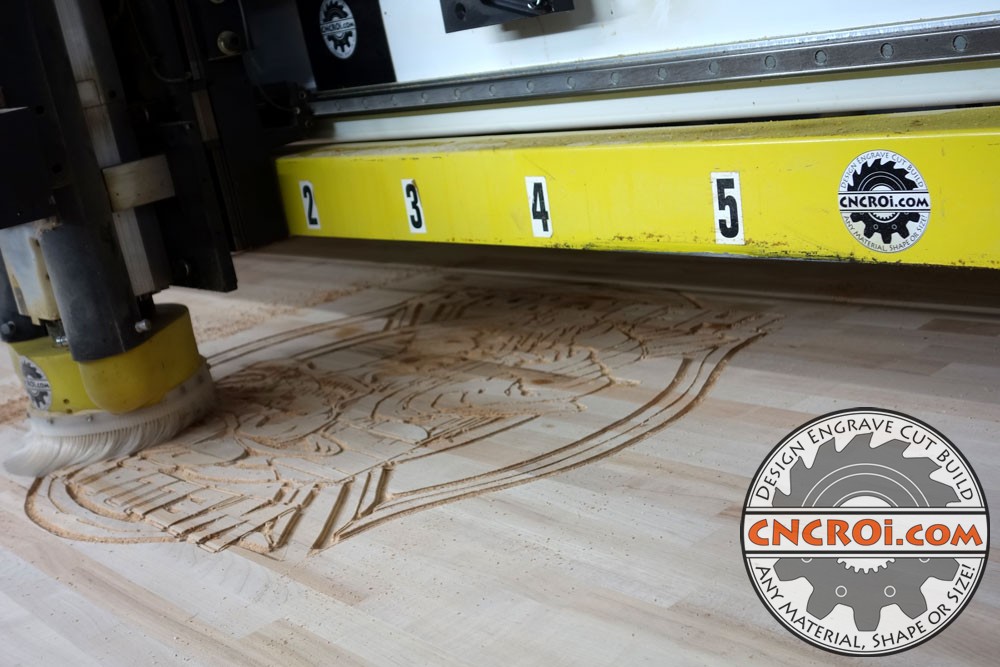

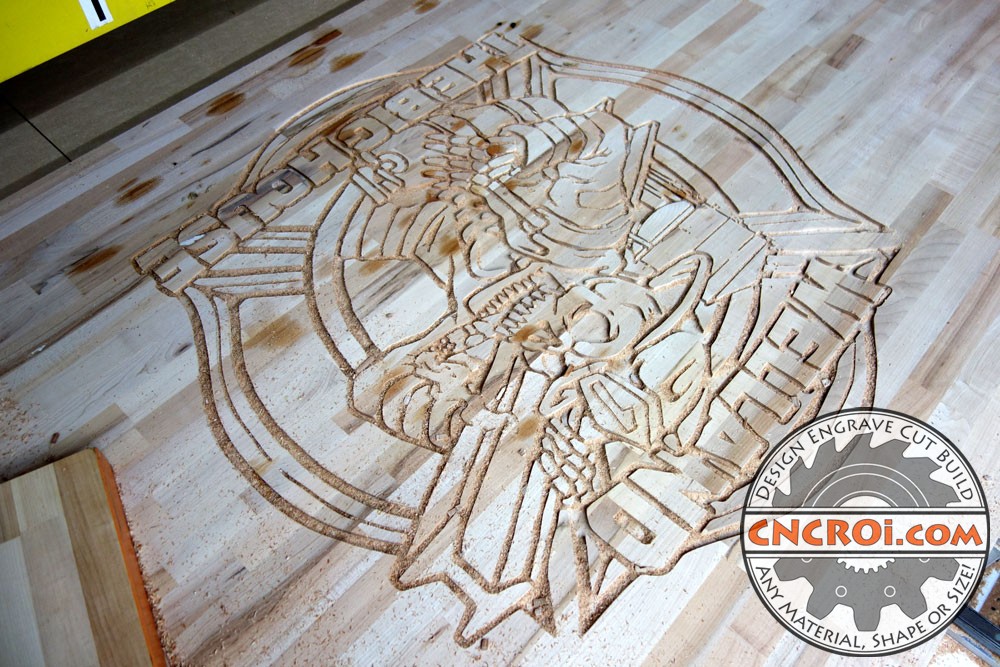

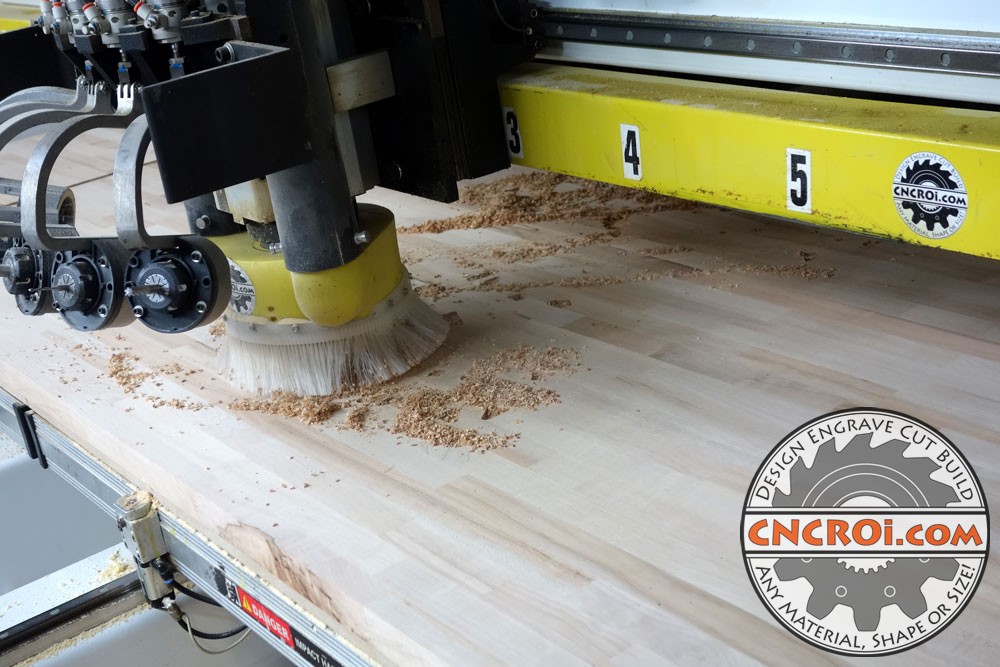

The CNC router tables worked on by CNCROi.com are massive. One was just over 1.2 by 2.4 meters (4 by 8 feet) and laminated to maintain dimensional stability. The glue layers within the wood act like natural brakes to any warping tendencies by interrupting potential stress points across the panel.

This makes the entire piece heavier but much more stable, a critical factor when planning carving masterpiece tables that need to hold their shape for decades.

Laminated maple is also harder than standard wood, meaning routing speed must be controlled. The carving cannot go at breakneck speeds, especially with small bits. At high speeds, tight-grained hardwood like maple will crack or break the tool, adding downtime and material waste.

It is a balancing act of speed, tool diameter, depth, and material hardness, something CNCROi.com navigates with experience and precision.

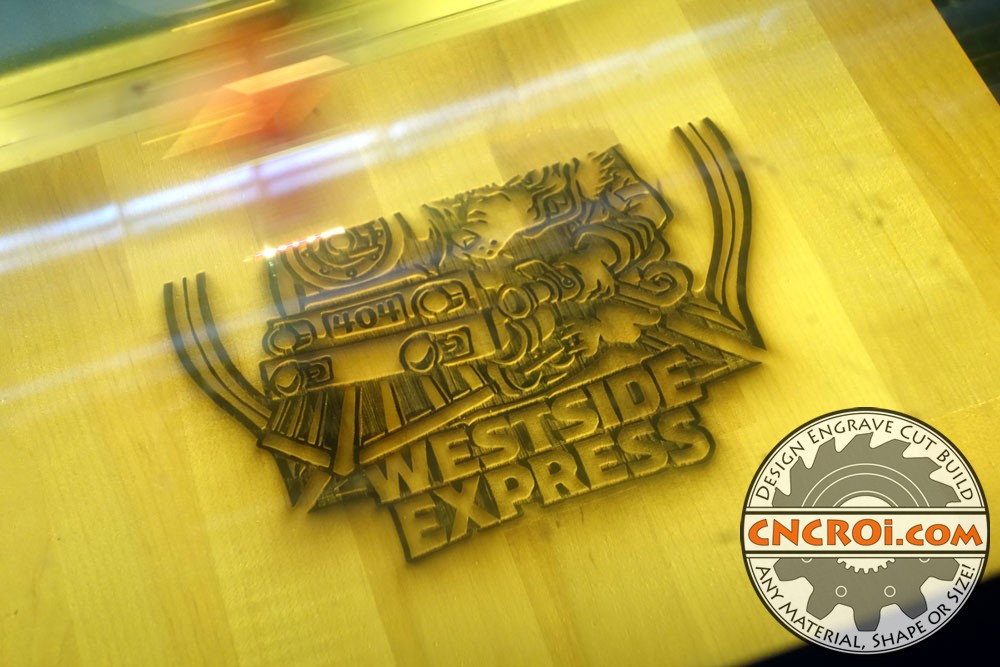

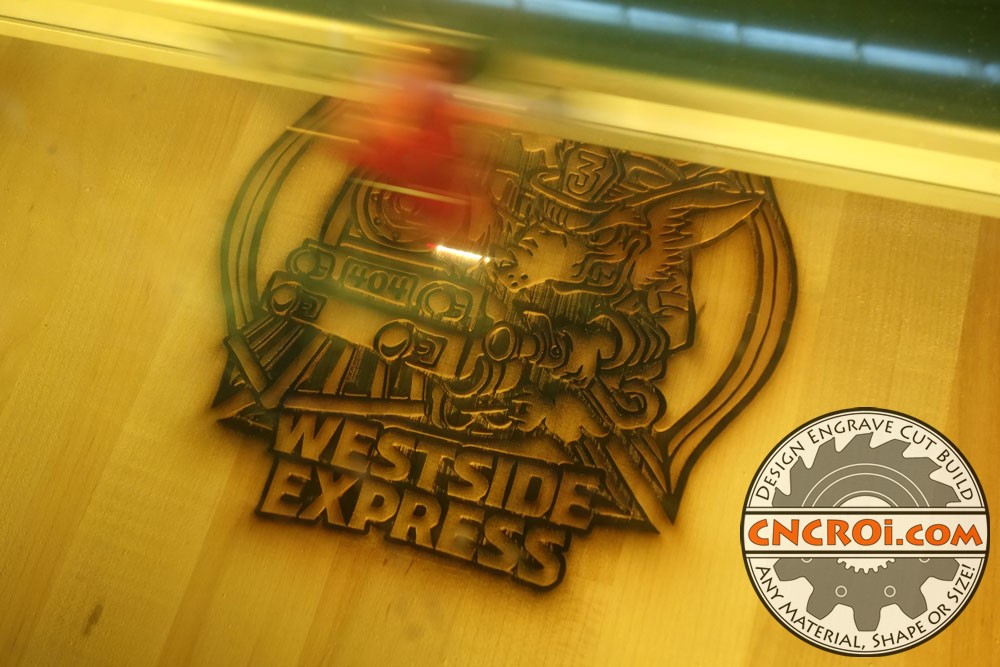

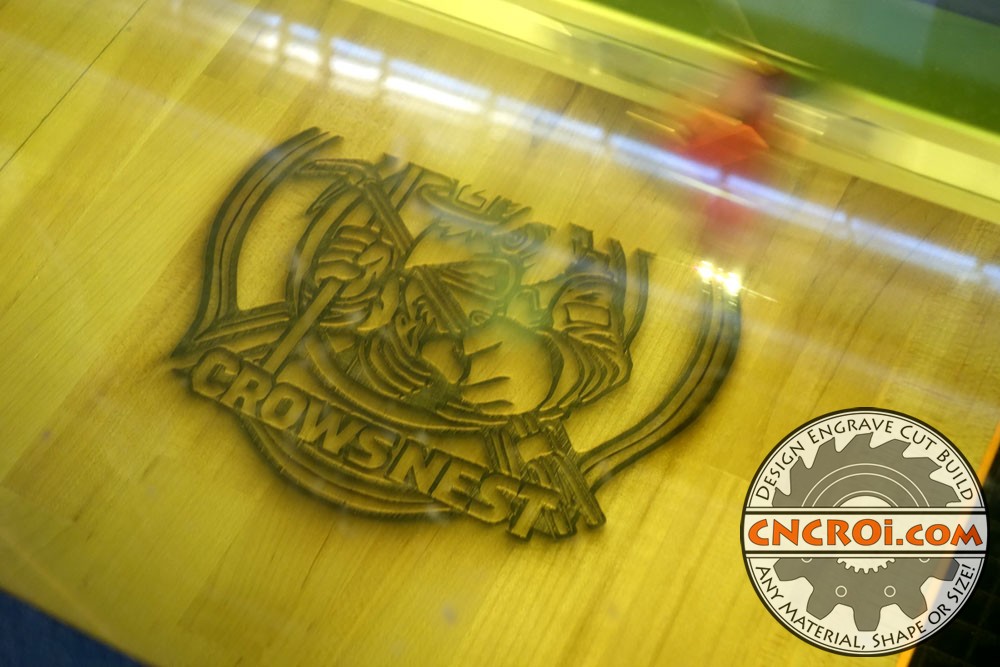

Laser engraving benefits from nearly infinite resolution, a major asset when carving masterpiece tables. With the laser, there’s no need to step through bit sizes. Instead, detail is achieved by controlling speed and power settings. In this particular project, three passes were made to reach just below 3.175 millimeters (1/8 inch) and slightly less than 6.35 millimeters (1/4 inch).

This gives the client enough depth for epoxy fills while allowing ample material for sanding without removing the engraving.

However, because all tables are going into the same environment, consistency becomes crucial. Whether using CNC routing or laser engraving, maintaining the same black epoxy fill ensures that all carving masterpiece tables match aesthetically.

While lasers can go deeper and offer sharper definition, using them alongside CNC routing demands coordination to ensure uniformity across pieces.

File preparation is another essential part of producing carving masterpiece tables. For both laser and router operations, black and white imagery is critical. Grayscale images may be acceptable in some cases, but for epoxy-filled projects, it muddies the detail. Inconsistent depth means inconsistent epoxy layers, reducing visual clarity.

CNCROi.com always recommends clean vector-based artwork or high-resolution raster images in pure black and white to ensure precision.

Although 3D carving is technically possible, it is less suitable for projects requiring epoxy fills. A consistent depth provides a cleaner look and a better fill result. This client opted for two-depth layers: the table surface and a 6.35 millimeter (1/4 inch) recess.

The CNC router was programmed accordingly to make smooth, defined cuts, ensuring epoxy flows uniformly and finishes smoothly.

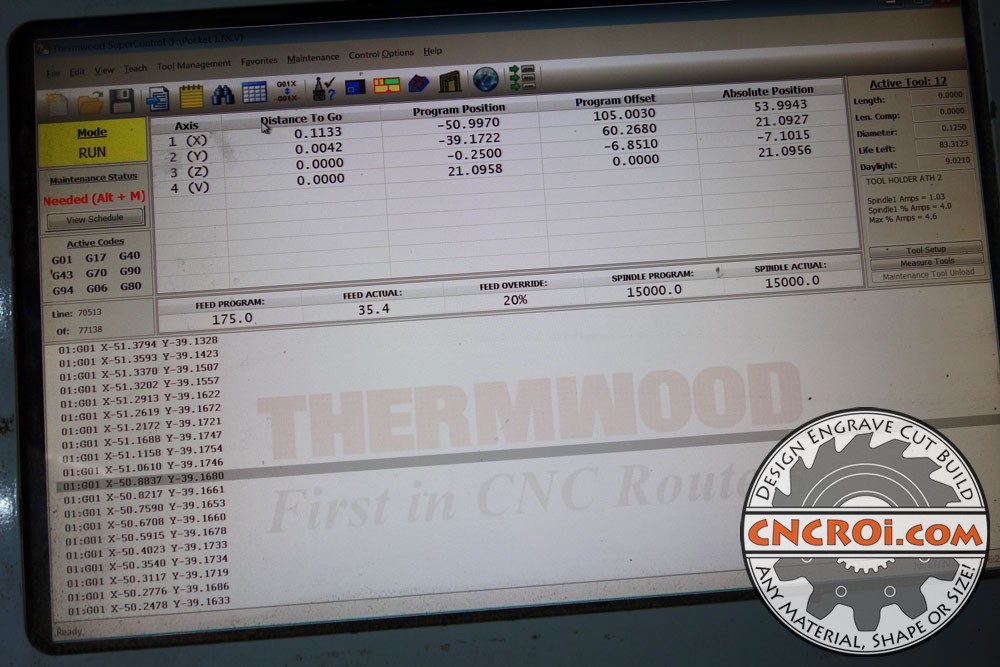

Absolute positioning systems are vital in both laser and CNC setups. If there’s a power failure mid-job, everything can be restarted exactly where it left off. As long as nothing is physically moved, precision down to microns is maintained.

However, touching or shifting the material after shutdown causes alignment errors that will ruin the entire project. CNCROi.com learned this the hard way in earlier days and now follows strict non-interference protocols mid-job.

Bit selection, feed rate tuning, laser power calibration, and epoxy compatibility are all pre-calculated. This is what separates casual wood engraving from professional-grade CNC artistry.

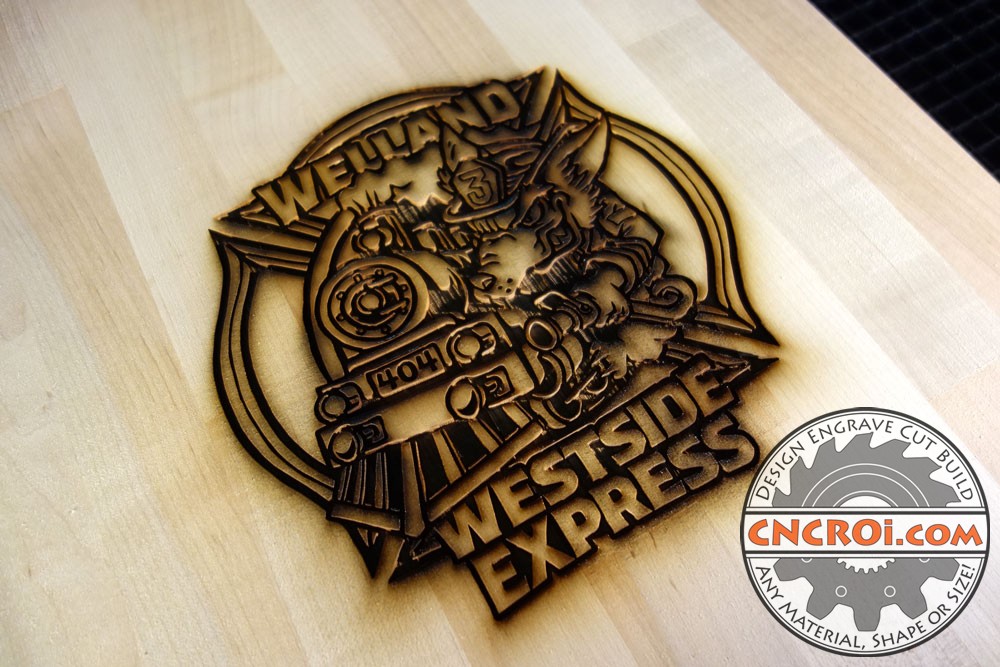

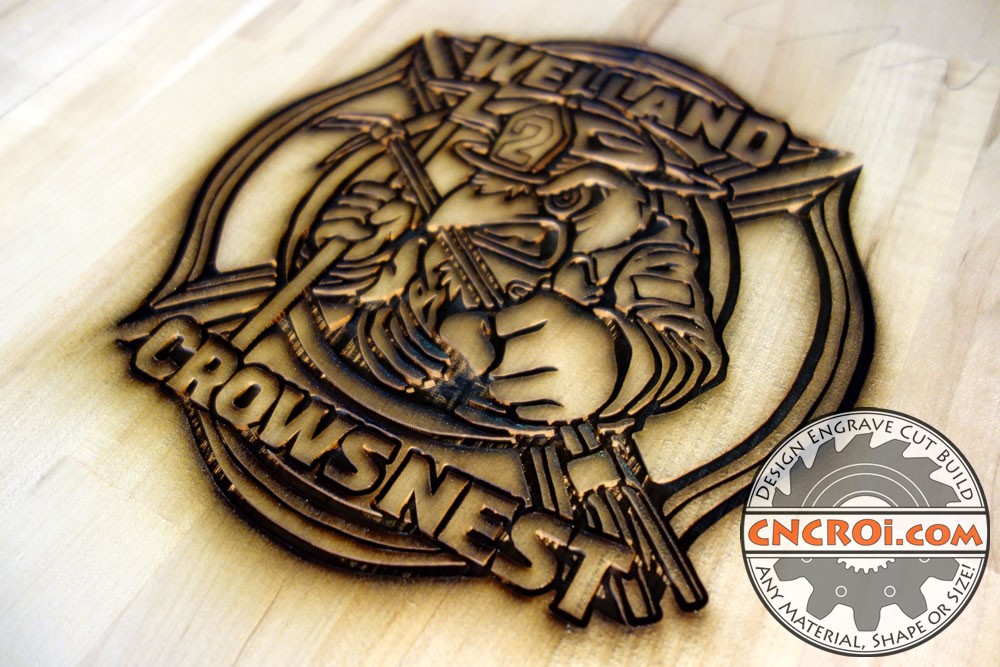

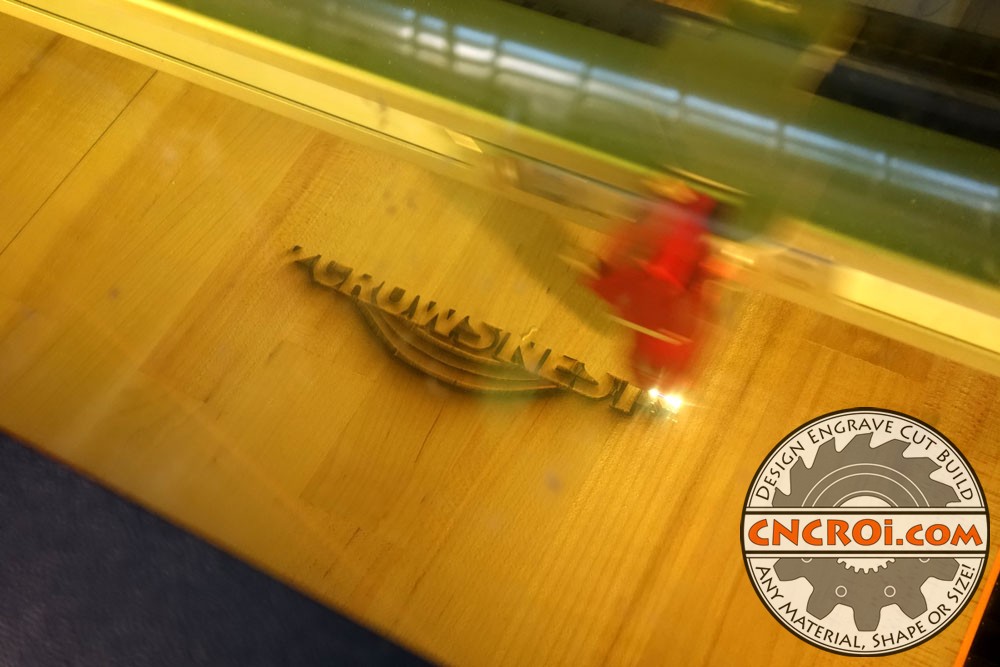

On the laser side, the smaller side tables were roughly 203 millimeters (8 inches) in diameter. These were engraved quickly and cleanly, offering precise line work with minimal setup time compared to the massive CNC-routed centerpiece.

Because laser engraving doesn’t rely on physical tool pressure, it’s ideal for thinner woods or delicate components, though it lacks the deep relief of routed engravings.

Choosing between laser engraving and CNC carving depends on the type of wood, required depth, and overall design goals. CNCROi.com often uses both tools in complementary ways to maximize efficiency and output quality. Lasers excel in fine surface detailing while routers dominate in depth and texture.

This flexibility is what makes the creation of carving masterpiece tables so unique.

The process also reveals hidden variables most clients never see. For instance, router bits generate heat, and excessive friction can scorch the wood or warp the panel slightly.

Proper chip removal and airflow are critical in managing this. CNCROi.com uses specialized vacuum and dust collection systems to avoid surface contamination and reduce fire risk.

Once carved, sanding is essential. No matter how cleanly the engraving is made, residue or fibers will remain. These need to be removed before epoxy can bond. CNCROi.com advises clients to sand lightly, just enough to clear the smoke marks without altering the carved geometry.

This step ensures that the epoxy adheres correctly and the final product looks sharp and polished.

All carving masterpiece tables are created with the end-user in mind. Whether the table becomes a centerpiece in a corporate boardroom, a coffee table in a cozy home, or a feature piece in a luxury restaurant, the focus remains on delivering durability, elegance, and personality.

This is why every project begins with a consultation to align client vision with CNCROi.com’s capabilities.

From the moment a design file is received, everything becomes a planned series of steps. No tool movement is random. Every pass, every depth cut, and every fill strategy is mapped out. CNCROi.com prides itself on that structured approach, allowing creative expression to flourish without compromising on function or precision.

Clients frequently ask if it is possible to go even deeper or finer with detail. Technically, yes. A 0.79 millimeter (1/32 inch) bit could be used, but carving a full table with such a small tool would take weeks, and most clients do not want to invest that kind of time or budget.

So instead, a tiered approach with multiple bit sizes achieves 95% of the fine detail in a fraction of the time, which is more realistic for both the client and production timeline.

One key factor in carving masterpiece tables is wood movement. Wood is hygroscopic, which means it absorbs and releases moisture based on environmental conditions. That is why laminated boards are chosen whenever possible, especially for larger projects.

Laminated maple is less likely to cup, twist, or bow. The glue between layers forms cross-grain barriers that interrupt internal stress migration.

The final visual impact of a carving masterpiece table comes from how well the elements work together. The design, carving depth, surface finish, epoxy clarity, and wood grain must all harmonize.

CNCROi.com ensures this by controlling every variable they can and advising the client on the few they cannot, such as long-term wood movement or environmental exposure.

Carving masterpiece tables is a balance between craftsmanship and technology. Machines provide the precision, but it’s the human behind the screen that brings the vision to life. CNCROi.com takes pride in bridging that gap, turning flat panels into artwork that lasts a lifetime.

If you’re thinking about creating your own carving masterpiece table or any custom wood engraving project, CNCROi.com is ready to help. With the skills, machines, and experience to tackle any size or shape, from boardroom installations to heirloom-quality keepsakes, we can turn your idea into a reality and ship it straight to your door.

Carving masterpiece tables also demands attention to epoxy behavior. Not all epoxies flow or cure the same way. CNCROi.com recommends black epoxy for maximum contrast, especially on lighter woods like maple.

Black enhances detail visibility and gives depth, but it must be applied with care. Air bubbles, uneven curing, or under-sanded surfaces can all impact the final appearance. CNCROi.com provides clients with detailed guidelines on how to prepare and fill engravings to maintain the integrity of the carving and ensure long-term durability.

Another consideration is matching carving scale with grain pattern. On larger tables, wood grain can become a distraction if not properly aligned with the design. CNCROi.com pre-selects laminated panels that showcase uniform grain direction and minimal defects. This ensures that the router or laser doesn’t encounter sudden density changes that can deflect bits or create uneven burning.

A consistent grain backdrop also makes the carving masterpiece tables appear smoother and more unified once the epoxy is poured and sanding is complete.

After engraving and epoxy curing, the surface is planed or sanded again to bring everything flush. The goal is a smooth, level surface with crisp edges around the engraved zones. For carving masterpiece tables, this final step is what brings everything together.

CNCROi.com ensures the finishing stage doesn’t introduce swirl marks or unintended blemishes. Depending on customer preference, a matte, satin, or high-gloss topcoat can be applied to lock in the design and protect the surface from moisture and UV exposure. Of course, like the epoxy, the client will be doing all of these tasks in this case, though we could also do it.

In the end, carving masterpiece tables is more than just cutting into wood. It is about design translation, material control, machine accuracy, and finish finesse. CNCROi.com combines years of hands-on experience with digital precision to offer results that are both functional and stunning.

Every engraving, from the smallest detail on a side table to the centerpiece of a large maple slab, reflects a commitment to craftsmanship and client satisfaction. Reach out to CNCROi.com for your next custom engraving or CNC project—we’ll turn your concept into a tangible work of art.
