Custom Golf Ball Jigs for UV Printing
Jon from CNCROi.com introduces a practical solution built around efficiency, repeatability, and a bit of clever workflow thinking. The focus is a golf ball jig designed specifically for UV printing applications, where accuracy and consistency matter more than guesswork. While CNCROi.com does not operate UV printers internally, it regularly produces tooling for customers who rely on them daily.
The golf ball jig exists because many UV printer owners lack CNC equipment such as routers, lasers, or plasma systems. That gap creates a need for precision tooling that ensures every print lands exactly where intended. CNCROi.com fills that role by producing highly accurate jigs tailored to each customer’s setup and production goals.
Each golf ball jig is designed to hold multiple golf balls securely in fixed positions. The UV printer then applies graphics, logos, or text directly onto the surface. Because the printing process depends on consistent placement, even a deviation of 0.2 mm can affect alignment and final appearance.

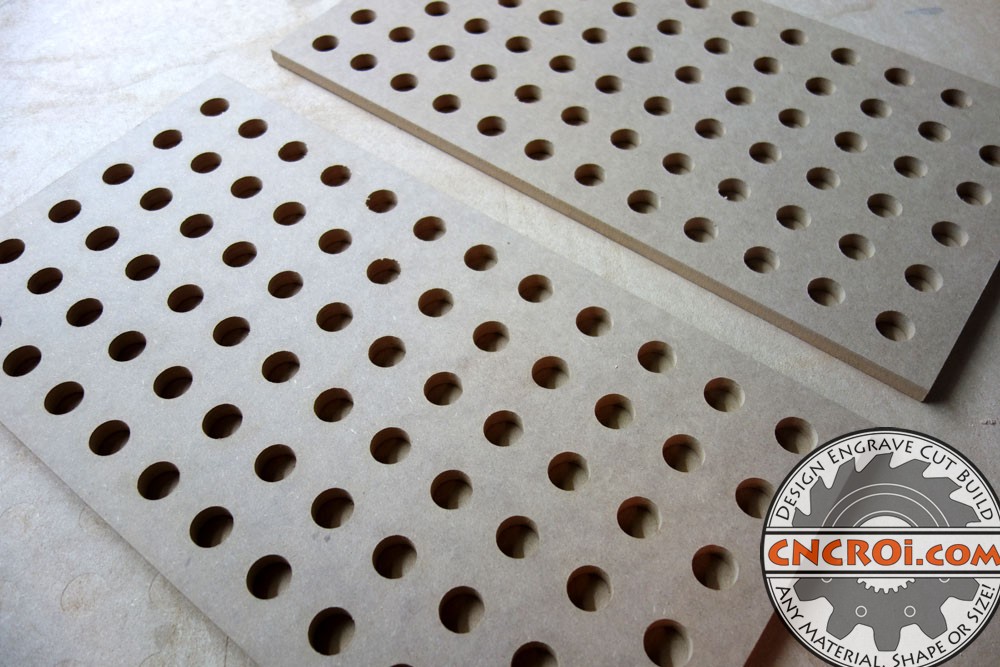

In this case, two identical golf ball jig units are produced rather than one. At first glance, this might seem excessive, but it is actually a productivity strategy. While one golf ball jig is inside the printer, the second is being loaded or unloaded outside the machine.
This dual jig workflow reduces idle time significantly. If a print cycle takes 45 seconds (0.75 min), the operator can prepare the next batch during that time. Without a second golf ball jig, the printer would sit idle while loading occurs, reducing throughput.
Orientation is particularly important when printing on spherical objects. A golf ball jig ensures each ball is positioned consistently, so the printed image appears in the correct location every time. Without this control, results can quickly become inconsistent and frustrating.
Material choice for the golf ball jig depends on production volume and budget. MDF is often used for initial runs because it is cost effective and easy to machine. It performs well for moderate production levels and allows quick turnaround.
For higher volumes, customers may transition to Delrin or aluminum. These materials provide greater durability and resistance to wear, especially when handling thousands of cycles. Cleaning and maintenance also become easier with these materials.
Regardless of material, each golf ball jig maintains identical geometry. This means a design proven in MDF can later be reproduced in Delrin or aluminum without changing the setup. Consistency is maintained across every version.

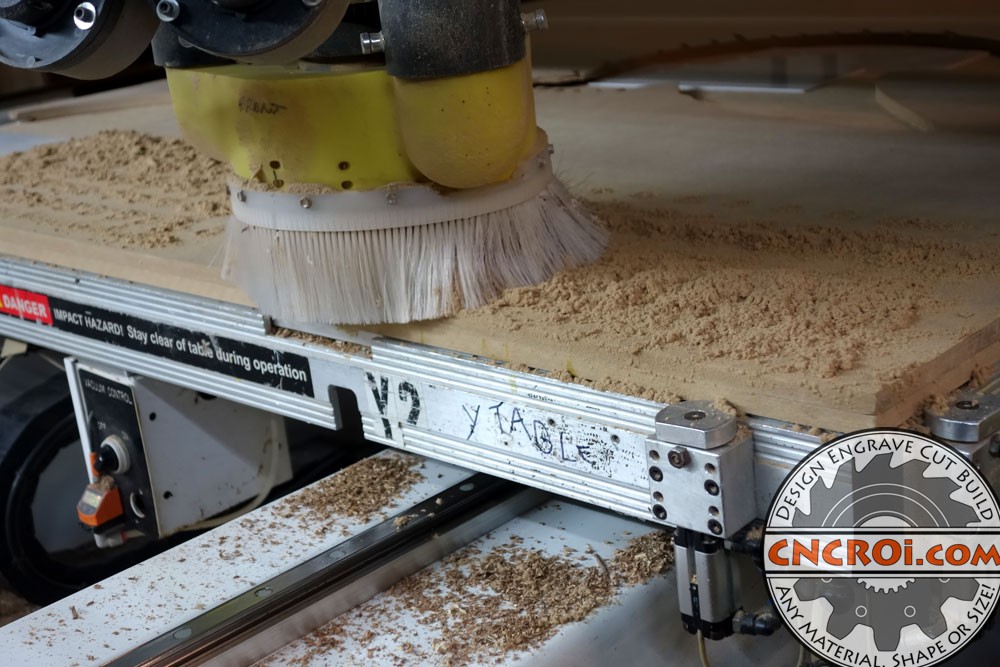

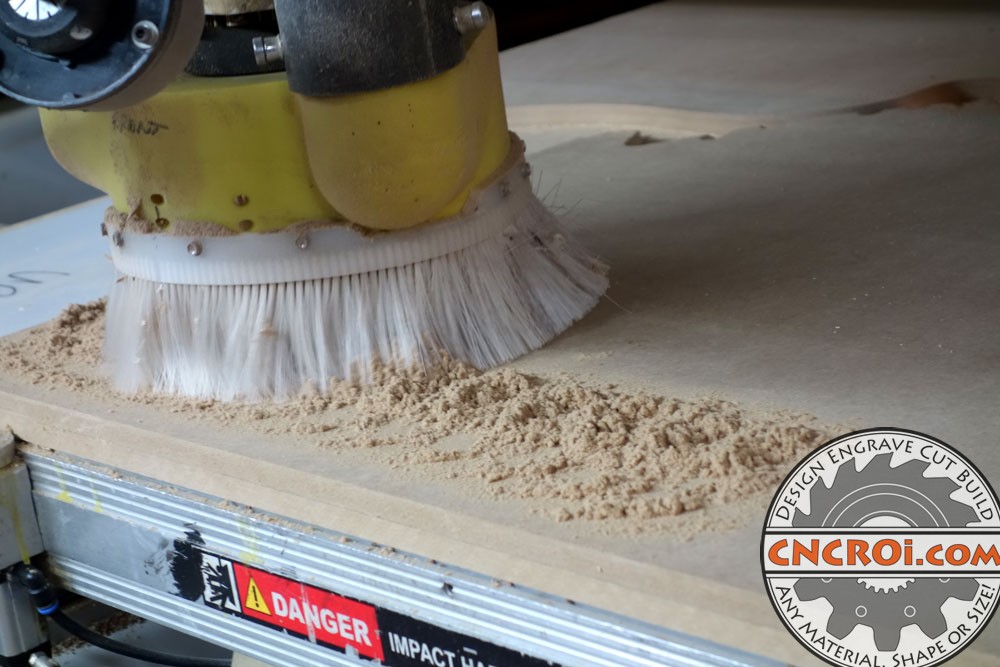

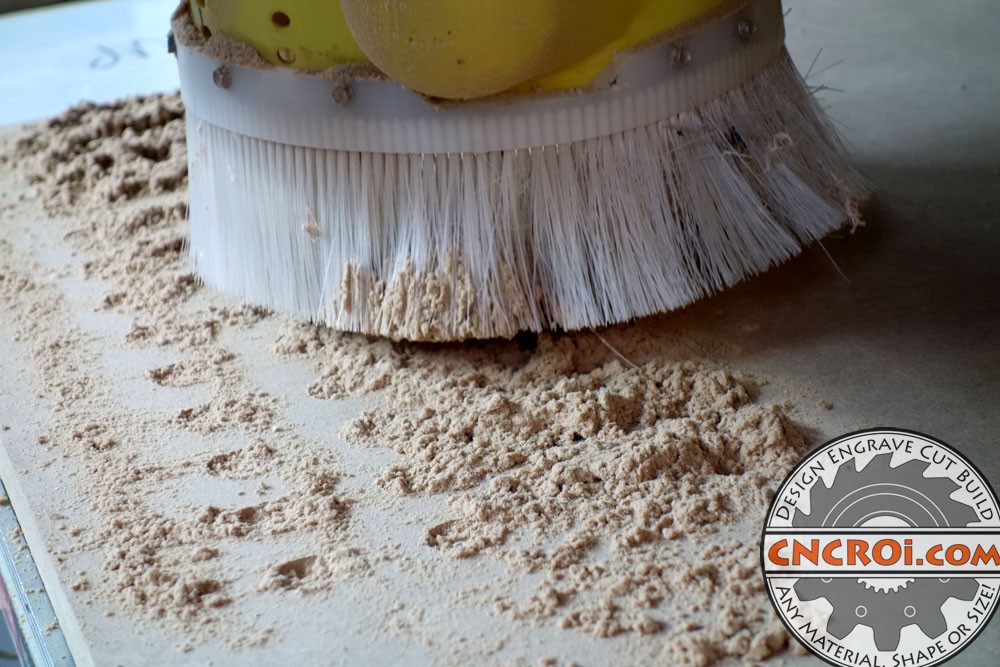

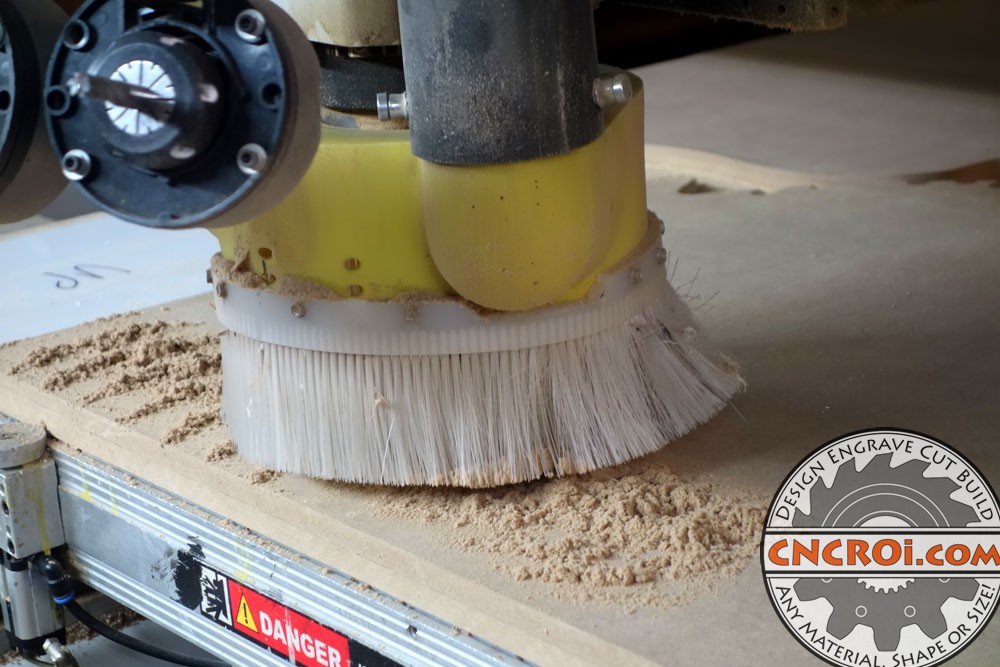

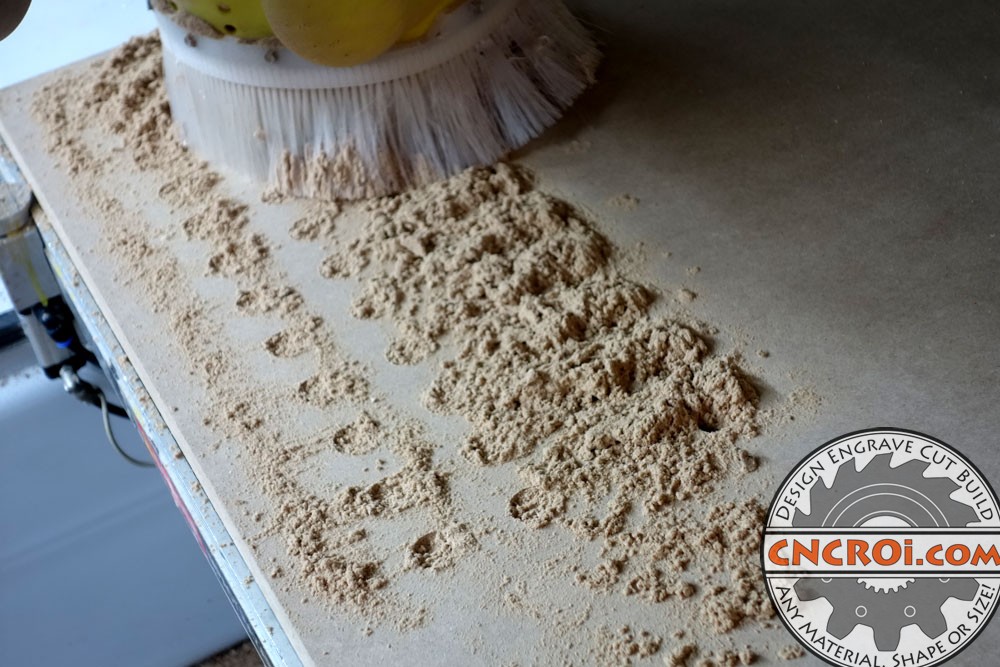

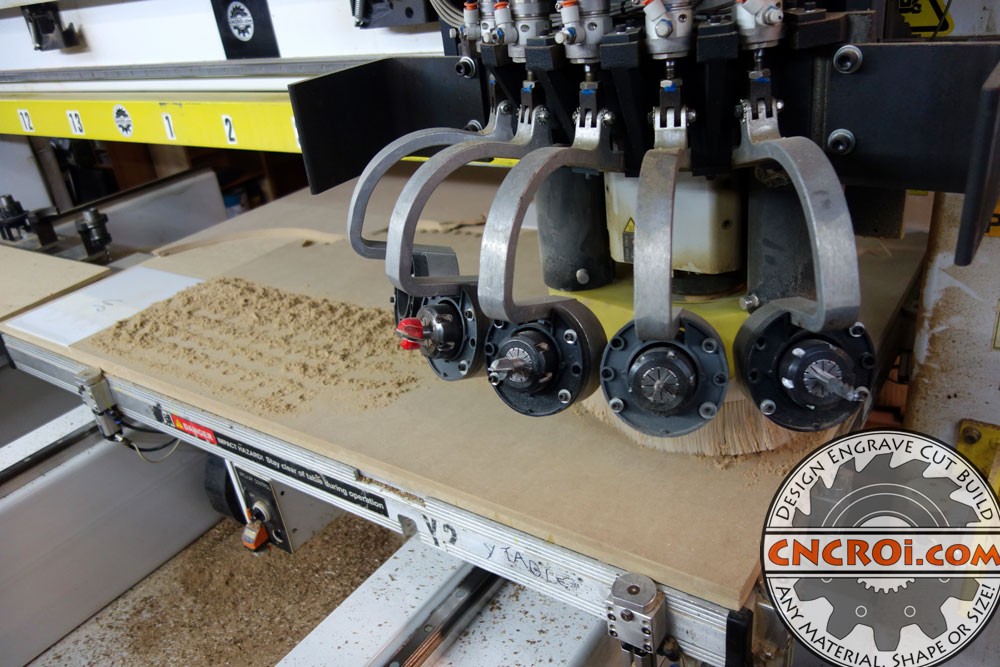

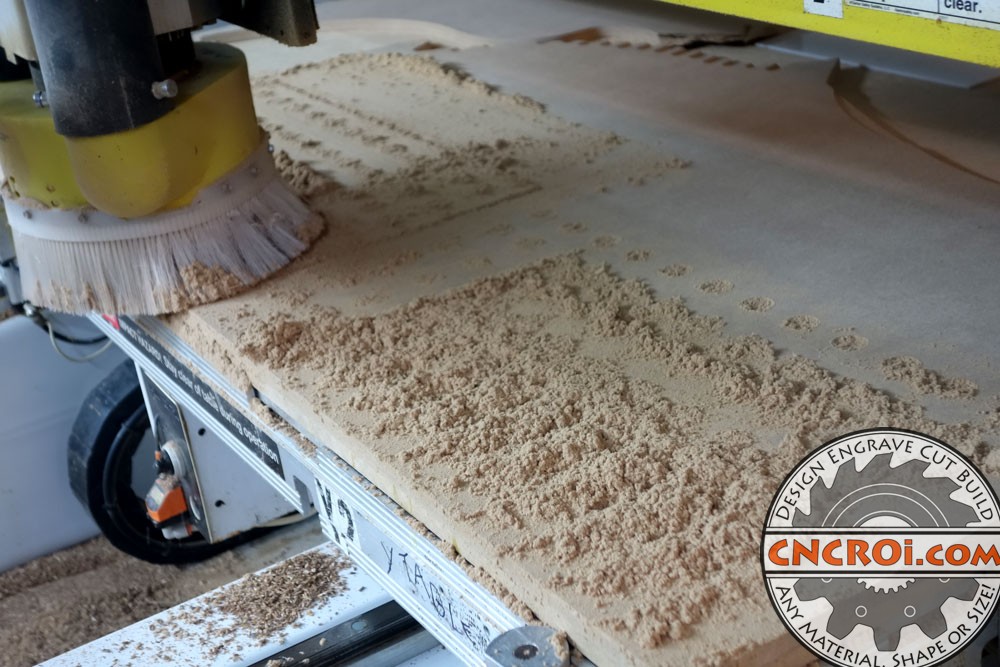

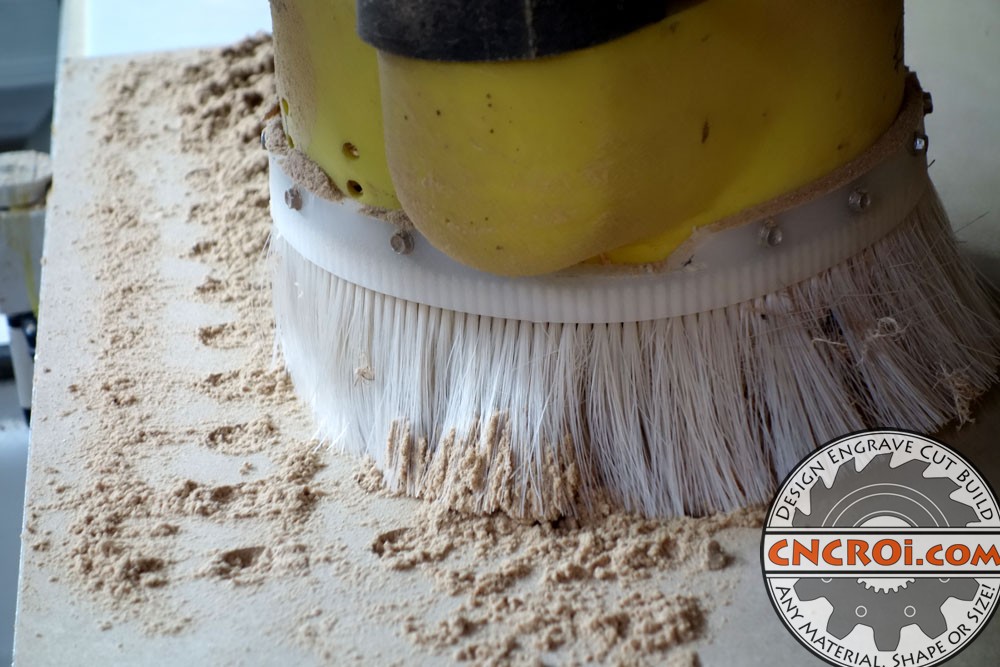

The golf ball jig shown is produced using a Thermwood CNC router. This ensures every cavity is machined to the same depth and diameter, often within tolerances tighter than 0.1 mm. Precision like this is what allows repeatable results across large production runs.
One of the biggest advantages offered by CNCROi.com is long term consistency. A golf ball jig made today will match one produced months or even years later. This eliminates the need for retooling when scaling production.
Customers often expand their operations over time. They may start with one UV printer and later add additional machines. Having identical golf ball jig units ensures that each printer produces the same output without adjustment.
The golf ball jig can also be customized to match specific printer bed sizes. Whether holding 6 golf balls or 60, the layout can be optimized for maximum efficiency. This helps reduce wasted space and improves production flow.
Spacing between each cavity is carefully calculated. Proper spacing ensures the UV printer head can move freely without interference, while still maximizing the number of golf balls per cycle.
Depth of each pocket is also critical. The golf ball jig must hold each ball securely without excessive pressure. A depth of approximately 20 mm (2 cm) may be used depending on the design and ball size.
The repeatability of the golf ball jig also reduces operator error. Once the setup is dialed in, the process becomes predictable. Load, print, unload, repeat. It is not glamorous, but it is highly effective.
There is also a slightly humorous reality to all this. Many businesses invest heavily in advanced UV printers but overlook the simple tooling that makes those machines efficient. The golf ball jig quietly does the heavy lifting behind the scenes.
Without a proper golf ball jig, operators may attempt manual placement. This often leads to inconsistent results and slower production. It also increases the likelihood of wasted materials and reprints.
CNCROi.com approaches each golf ball jig as a production tool rather than a one off accessory. The goal is to create something that integrates seamlessly into an existing workflow and improves it immediately.
Because everything is made on demand, customers can order exactly what they need. Whether it is a single golf ball jig or multiple identical units, production remains consistent across all orders.
The ability to reproduce identical jigs over time is especially valuable. If a customer returns after 6 months (180 days) needing additional units, CNCROi.com can deliver matching products without deviation.
Shipping is handled directly, meaning customers receive their golf ball jig ready for use. There is no need for additional setup or modification before integrating it into their workflow.
The flexibility of CNCROi.com extends beyond golf applications. While the golf ball jig is a great example, similar concepts apply to many other products that require precise positioning during printing or engraving.
Ultimately, the golf ball jig represents a simple idea executed with precision. It improves efficiency, ensures consistency, and reduces downtime. Not bad for something that just holds a bunch of small white spheres.
For any business looking to streamline UV printing operations, the solution is straightforward. Contact CNCROi.com to discuss your project. Whether it involves a golf ball jig or something entirely different, CNCROi.com is ready to help turn that idea into a reliable production tool.
